Product Description

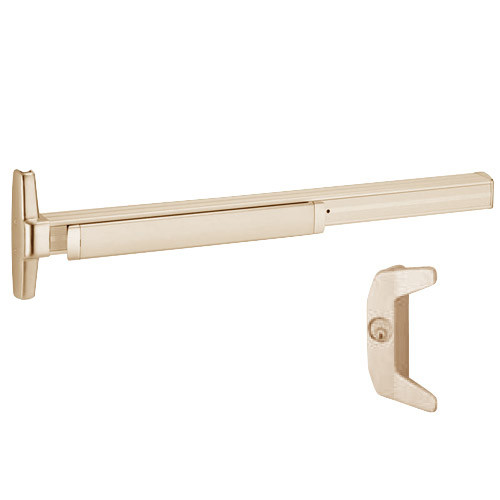

3349A-NL-LHR-US10-2 Von Duprin 3349A Series with 386NL Night Latch Concealed Vertical Cable Exit Device in Satin Bronze Finish
This device is for a 24" door
The Von Duprin 3349A-NL-LHR-US10-2 series of exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3349A concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.
The 3349A Series has a "grooved mechanism case"
Features and Benefits:
- Satin Bronze finish
- Recommended for door opening heights - 6'8" to 8'4" as standard
- Night Latch Trim - Key Retracts Latchbolt
- ANSI Function: 03
- It fits door stiles as narrow as 2-1/8" (44 mm) door size
- Device lengths: 2 feet (610 mm) i.e. 2' device for 2' door size
- Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
- Vertical cables: 7/32" (6mm) diameter stainless steel cables
- Handed operation - Left Hand Reverse
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 3349A series exit devices are UL listed for panic exit hardware
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 1/2" (13mm) throw
- Strike: Top - 249 strike and Bottom - 349 strike included as always
- Cylinders are not included
- Hex key dogging feature standard
- Includes 386NL standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
- Device centerline from finished floor: 39-13/16" (1006mm) as standard
