Product Description

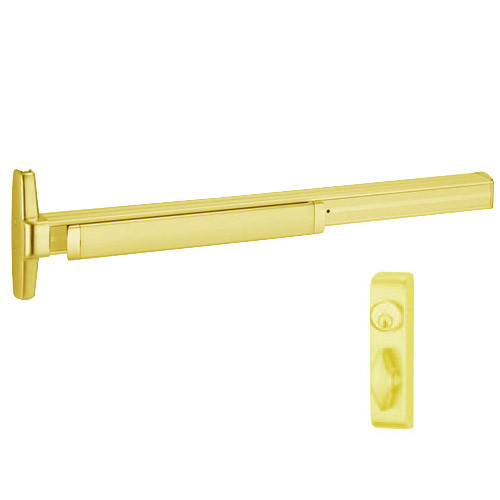

3350A-WDC-T-F-US3-4 Von Duprin Series with 360T Thumbturn Wood Door Concealed Vertical Cable Exit Device in Bright Brass Finish
This device is for a 48" door
The Von Duprin 3350A-WDC-T-F-US3-4 series of exit device for use on double wood doors up to 8' x 10' (2438mm x 2540mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3350A-WDC wood door concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.
The 3350A-WDC Series has a "grooved mechanism case"
Features and Benefits:
- Bright Brass finish
- Thumbturn Trim - Key Locks and Unlocks
- ANSI Function: 11 or 12 field selectable
- It fits narrow stile doors
- Device is furnished standard with an 15" (381 mm) long scalp plate for easy access to cables
- Device lengths: 4 feet (1219mm) i.e 4' device for 2'10" - 4' door (813 mm to 1219 mm) door size
- Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood doors
- Vertical cables: 7/32" (6mm) diameter stainless steel cables
- Non-handed operation provides greater flexibility
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 3350A-WDC series exit devices are UL listed for fire exit hardware
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 1/2" (13mm) throw
- Strike: Top - 150 strike and Bottom - 450 strike included as always
- Product includes two strikes, sex bolts and scalp plate as always
- Cylinders are not included
- Hex key dogging feature standard
- Includes 360T standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
- Device centerline from finished floor: 39-13/16" (1006mm) as standard
