Product Description

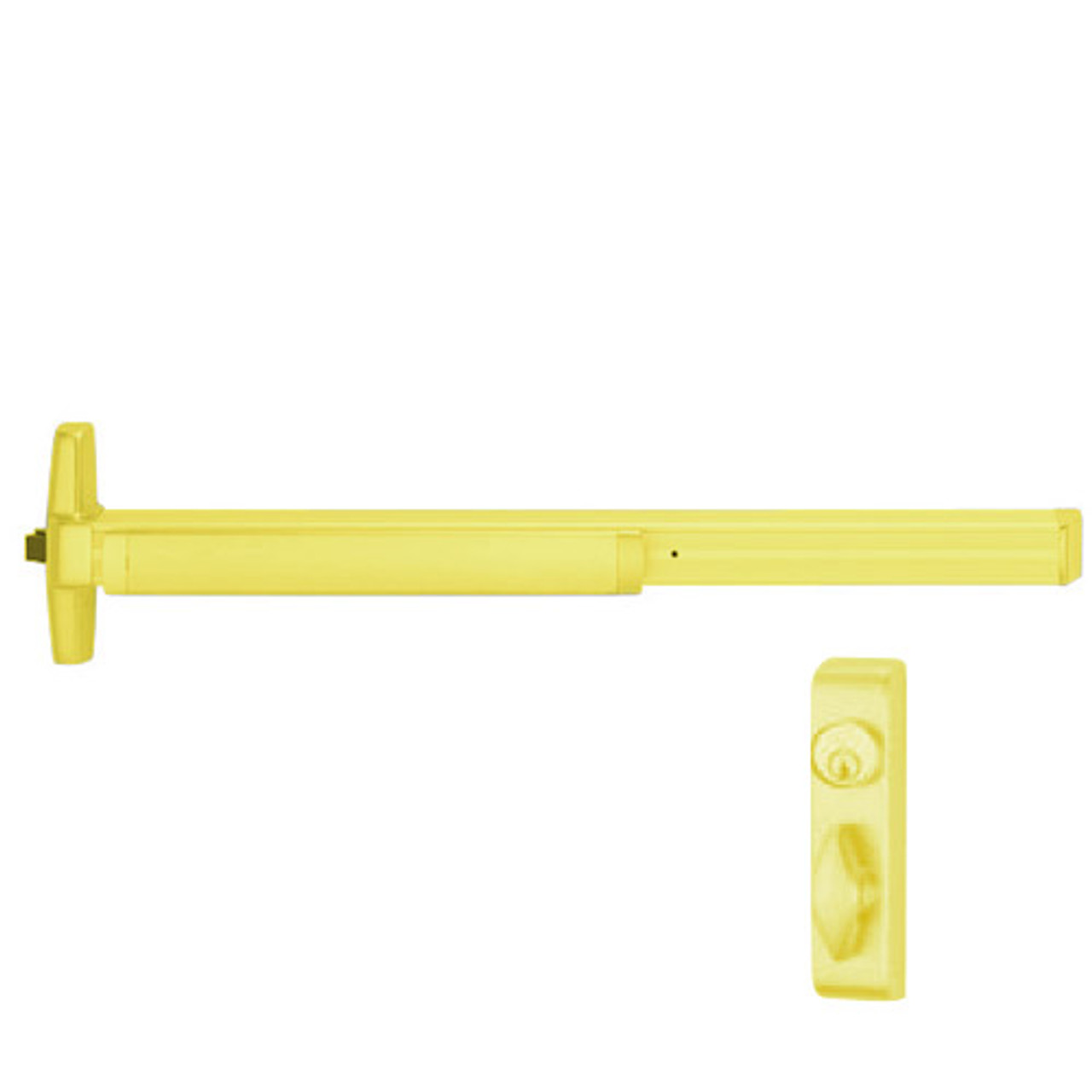

33A-T-US3-4 Von Duprin 33A Series with 360T Thumbturn Non Fire Rated Rim Panic Exit Device in Bright Brass Finish

The Von Duprin 33A-T-US3-4 series of Exit Device for all types of single and double doors with mullion is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 33A Rim panic exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 33A Series has a "grooved mechanism case"

Features and Benefits:

• Bright Brass Finish
• Thumbturn Trim - Key Locks and Unlocks
• ANSI Function: 11 or 12 field selectable
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (864 mm to 1219 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 33A Series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 1439 strike dull black included as always
• Hex key dogging feature standard
• Includes 360T standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Cylinder must be ordered separately
• Device centerline from finished floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion
