Product Description

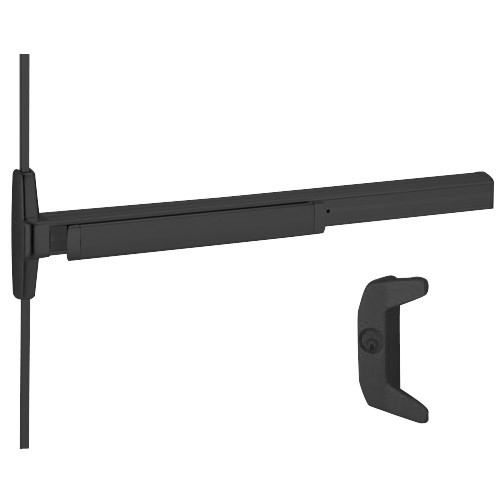

3527A-NL-LHR-315-4 Von Duprin 3527A Series with 386NL Night Latch Non Fire Rated Vertical Rod Exit Device in Black Finish

This device is for a 48" door

The Von Duprin 3527A-NL-LHR-315-4 series of Exit Device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3527A Vertical Rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3527A series has a "smooth mechanism case"

Features and Benefits:

• Black Finish
• Night Latch Trim - Key Retracts Latchbolt
• ANSI Function: 03
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (813 mm to 1219 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Handed operation - Left Hand Reverse
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3527A Series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
• Strike: Top - 266 strike dull black, bottom - 248L4 and 304L unfinished strike included as always
• Hex key dogging feature standard
• Meets ADA requirements if installed properly
• Includes 386NL standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Cylinder must be ordered separately
• Device centerline from finished floor: 39-13/16" (1006mm)
