Product Description

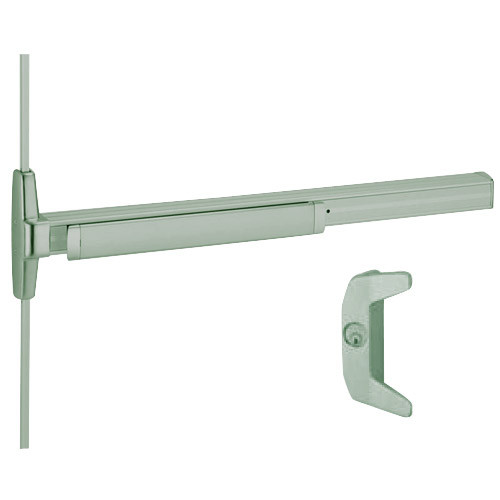

3527A-NL-RHR-F-US26D-3 Von Duprin 3527A Series with 386NL Night Latch Fire Rated Vertical Rod Exit Device in Satin Chrome Finish
The Von Duprin 3527A-NL-RHR-F-US26D-3 series of Exit Device for all types of double doors up to 8' x 10' (2438mm x 2540mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3527A Vertical Rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.
The 3527A Series has a "smooth mechanism case"
Features and Benefits:
- Satin Chrome Finish
- Night Latch Trim - Key Retracts Latchbolt
- ANSI Function: 03
- It fits door stiles as narrow as 2-3/16" (56mm) door size
- Device lengths: 3 feet (914mm) i.e 3' device for 2'4" - 3' door (660mm to 914 mm) door size
- Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
- Handed operation - Right Hand Reverse
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 3527A Series exit devices are UL listed for fire exit hardware
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
- Strike: Top - 299F and 304L unfinished strike included as always
- Cylinders are not included
- Includes 386NL standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
- Device centerline from finished floor: 39-13/16" (1006mm)
