Product Description

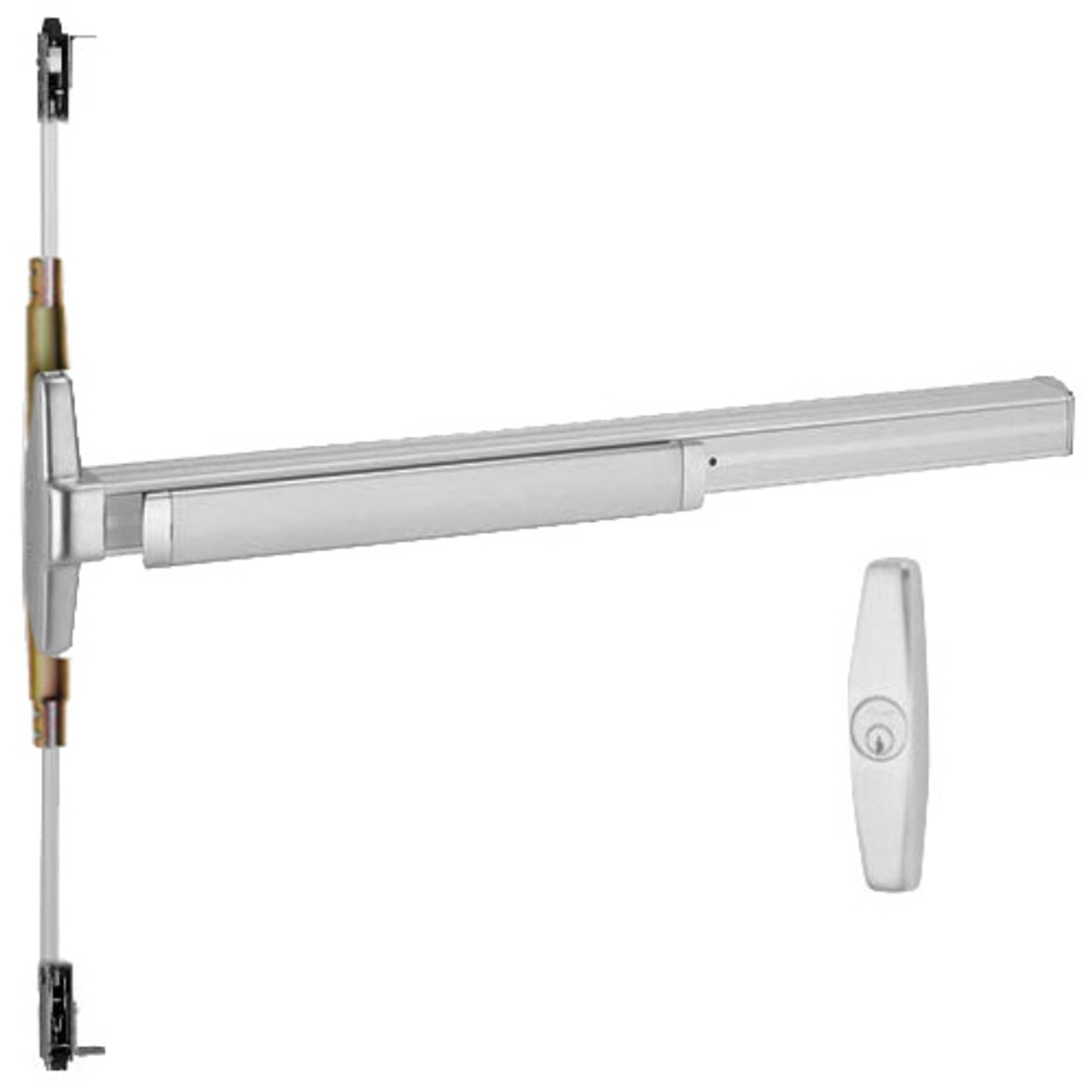

3547A-NL-OP-US28-3 Von Duprin 3547A Series with 388 Night Latch Non Fire Rated Concealed Vertical Rod Exit Device in Anodized Aluminum Finish

The Von Duprin 3547A-NL-OP-US28-3 series of Exit Device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3547A concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3547A Series has a "smooth mechanism case"

Features and Benefits:

• Anodized Aluminum Finish
• Night Latch Trim - Key Retracts Latchbolt with optional pull required
• ANSI Function: 03
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3547A Series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
• Strike: Top - 388 strike unfinished, bottom - 385A unfinished strike included as always
• Hex key dogging feature standard
• Includes 388 standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm)
