Product Description

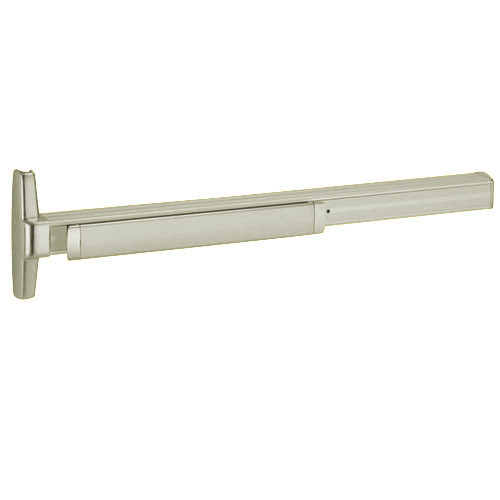

3548A-EO-US15-3 Von Duprin 3548A Series Non Fire Rated Concealed Vertical Rod Exit Device in Satin Nickel Finish

This device is for a 36" door

The Von Duprin 3548A-EO-US15-3 series of Exit Device for hollow metal single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3548A concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3548A series has a "smooth mechanism case"

Features and Benefits:

• Satin Nickel Finish
• ANSI Function: 01
• Exit only - No outside trim
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3548A Series exit devices are UL listed for panic hardware and are ANSI A156.3, 2001, Grade1 certified
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw and deadlocking anti-friction top and bottom bolt 1-1/2" (38mm) throw
• Strike: Top - 388 strike unfinished, bottom - 385A unfinished strike
• Hex key dogging feature standard
• Device centerline from finished floor: 39-13/16" (1006mm) standard
