Product Description

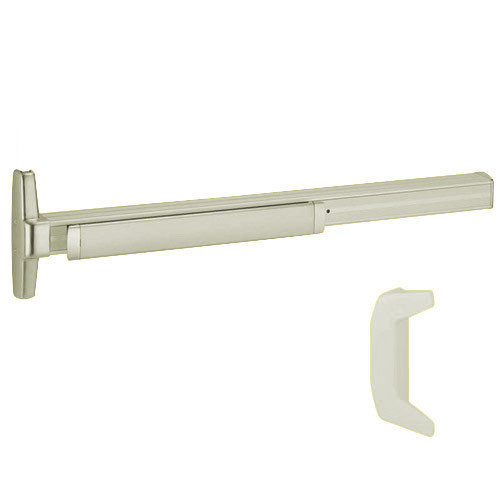

3549A-DT-US15-4 Von Duprin 3549A Series with 386DT Dummy Trim Concealed Vertical Cable Exit Device in Satin Nickel Finish

This device is for a 36" door

The Von Duprin 3549A-DT-US15-4 series of exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3549A concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3549A series has a "smooth mechanism case"

Features and Benefits:

• Satin Nickel finish
• Recommended for door opening heights - 6'8" to 8'4" as standard
• Dummy Trim - Pull when Dogged
• ANSI Function: 02
• It fits door stiles as narrow as 2-1/8" (44 mm) door size
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (813 mm to 1219 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Vertical cables: 7/32" (6mm) diameter stainless steel cables
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3549A series exit devices are UL listed for panic exit hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 1/2" (13mm) throw
• Strike: Top - 249 strike and Bottom - 349 strike included as always
• Cylinders are not included
• Hex key dogging feature standard
• Includes 386DT standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm) as standard
