Product Description

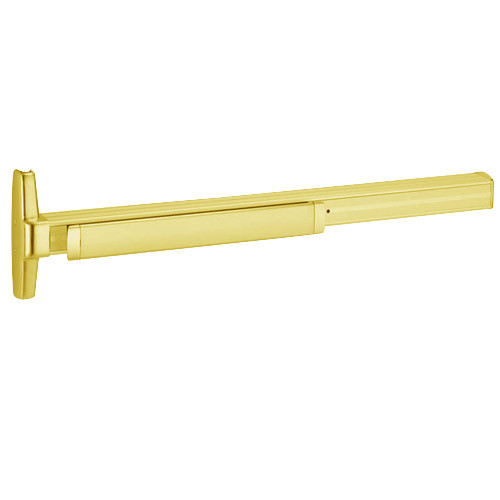

3549A-EO-US3-3 Von Duprin 3549A Series Concealed Vertical Cable Exit Device in Bright Brass Finish

This device is for a 36" door

The Von Duprin 3549A-EO-US3-3 series of exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3549A concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3549A series has a "smooth mechanism case"

Features and Benefits:

• Bright Brass finish
• Recommended for door opening heights - 6'8" to 8'4" as standard
• ANSI Function: 01
• Exit only - No outside trim
• It fits door stiles as narrow as 2-1/8" (44 mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2'4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Vertical cables: 7/32" (6mm) diameter stainless steel cables
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3549A series exit devices are UL listed for panic exit hardware and are ANSI A156.3, 2001, Grade1 certified
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 1/2" (13mm) throw
• Strike: Top - 249 strike and Bottom - 349 strike included as always
• Cylinders are not included
• Hex key dogging feature standard
• Device centerline from finished floor: 39-13/16" (1006mm) as standard
