Product Description

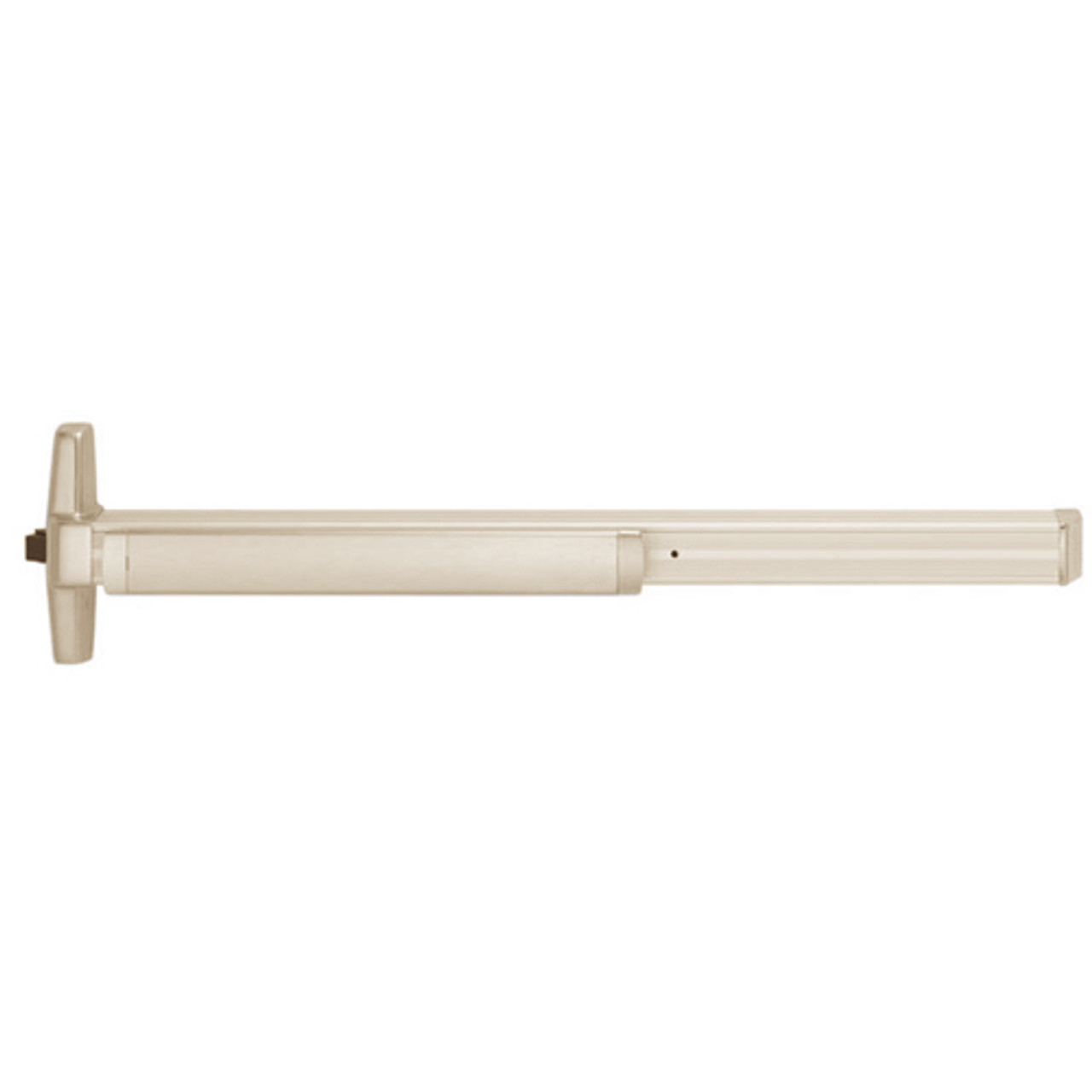

35A-EO-US4-4 Von Duprin 35A Series Non Fire Rated Rim Panic Exit Device in Satin Brass Finish

This device is for a 48" door

The Von Duprin 35A-EO-US4-4 series of Exit Device for all types of single and double doors with mullion is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 35A rim panic exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 35A series has a "smooth mechanism case"

Features and Benefits:

• Satin Brass Finish
• ANSI Function: 01
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (864 mm to 1219 mm) door size
• Fasteners: Includes 1-3/4" (44mm) to 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 35A Series exit devices are UL listed for panic hardware and are certified to ANSI A156.3, 2001, Grade1.
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 1439 strike dull black included as always
• Hex key dogging feature standard
• Device centerline from finished floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion
