Product Description

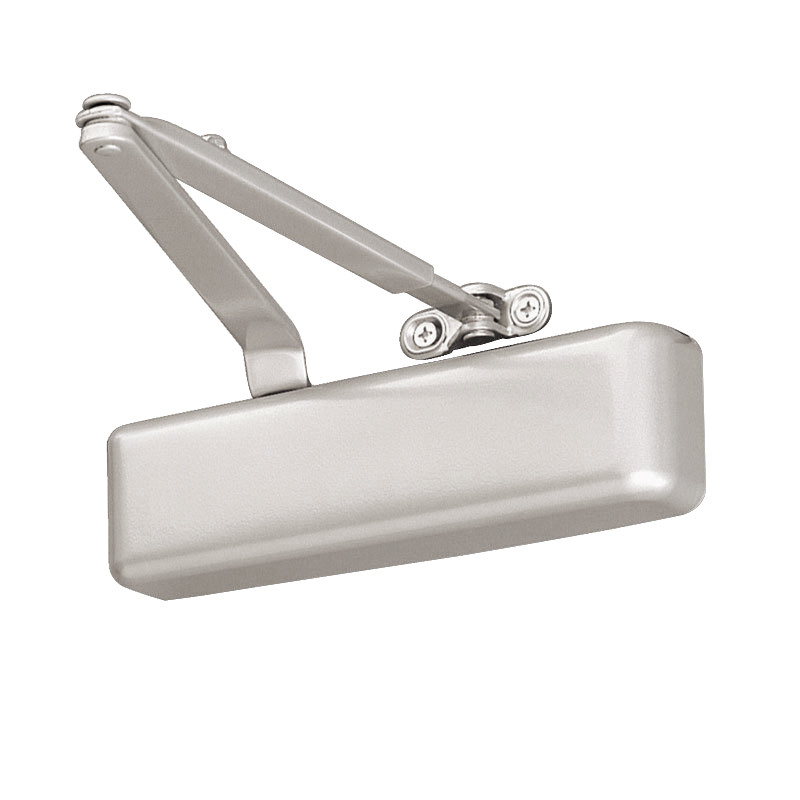

4031-SHCUSH-US15 LCN Surface Mount Door Closer with Spring Hold Open-Cush-N-Stop Arm in Satin Nickel Finish

The Surface Mounted LCN 4031 Series closer is a cast iron, universal door closer that is specifically designed for doors in the moderate traffic conditions. This versatile door closer compliments the rest of the heavy duty 4000 series closers and offers the choice of three type of mountings and multiple arm options.

Spring Hold Open-Cush-N-Stop Arm: non-handed parallel arm for the abusive applications that features a solid forged steel main arm and forearm with spring loaded stop in the soffit shoe.The handle controls the hold-open function.

Door Closer Features:

• Satin Nickel finish
• Cast Iron material
• It has heat treated steel pinion
• All weather fluid is standard
• Non-handed operation
• UL and cUL listed hardware
• Non-sized (1-4) cylinder is adjustable for interior doors up to 48" and exterior doors up to 36" wide dimensions
• This Closer can be mounted hinge side, top jamb and parallel arm on either a right hand or a left hand swinging door
• Closer meets ADA requirements if installed properly
