Product Description

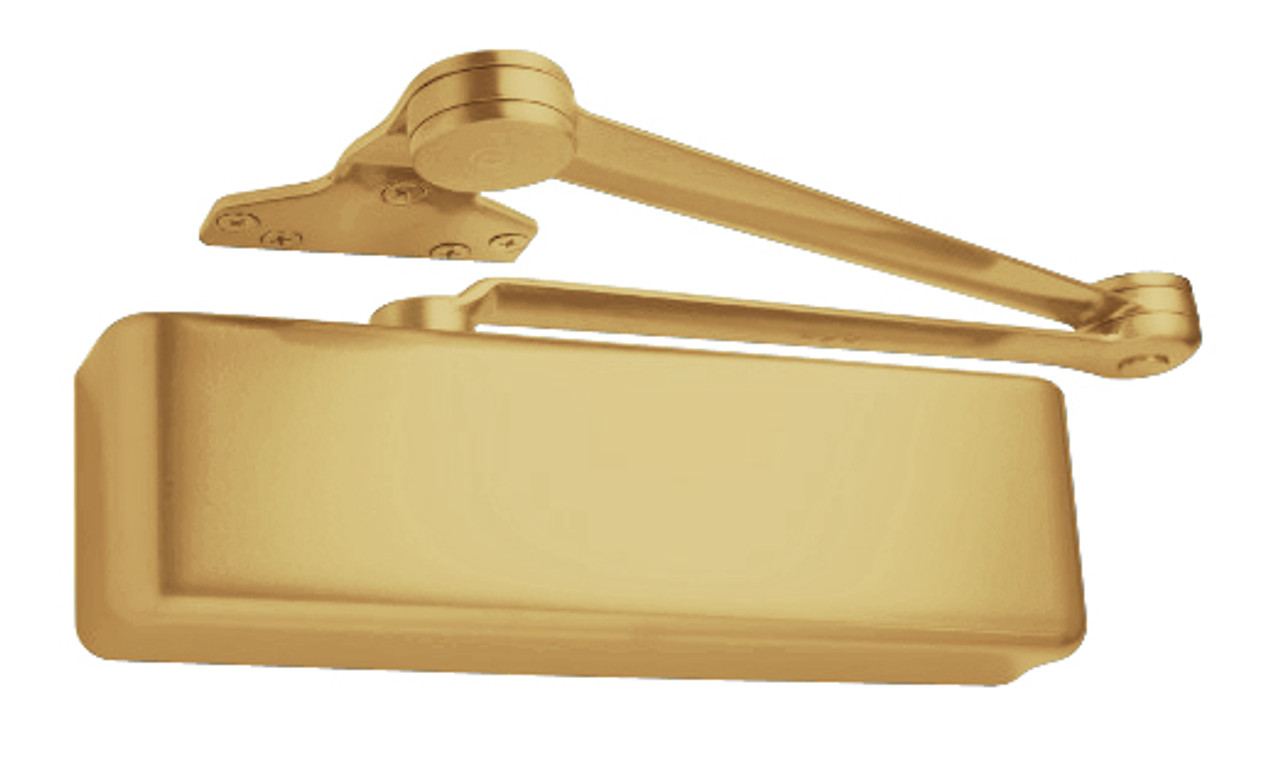

4040XP-EDA-w-62G-US3 LCN Surface Mount Door Closer Extra Duty Arm with Thick Hub Shoe in Bright Brass Finish

The Surface Mounted 4040XP is LCN's most durable and flexible heavy duty closer specifically designed for the institutional and other demanding high traffic applications.

Extra Duty Arm with Thick Hub Shoe: non-handed parallel arm that features forged, solid steel main and forearm for potentially abusive installations. Here, 62G shoe provides the additional blade stop clearance.

Door Closer Features:

• Bright Brass finish
• Cast Iron material
• It has double heat treated steel pinion
• All weather fluid is standard
• Non-handed operation
• UL and cUL listed hardware
• Non-sized (1-6) cylinder is adjustable for interior doors up to 5'0" and exterior doors up to 4'0" wide dimensions
• This Closer can be mounted hinge side, top jamb and parallel arm on either a right hand or a left hand swinging door
• Awesome peel-n-stick templates
• Full Compliment Bearing
• 3/4" Journal Diameter Pinion
• Closer meets ADA requirements if installed properly
• LCN patented "Green Dial" Spring Force Indicator
