Product Description

4040XP-HEDA-w-62G-LH-US15 LCN Surface Mount Door Closer Hold Open Extra Duty Arm with thick Hub Shoe in Satin Nickel Finish

The Surface Mounted 4040XP is LCN's most durable and flexible heavy duty closer specifically designed for the institutional and other demanding high traffic applications.

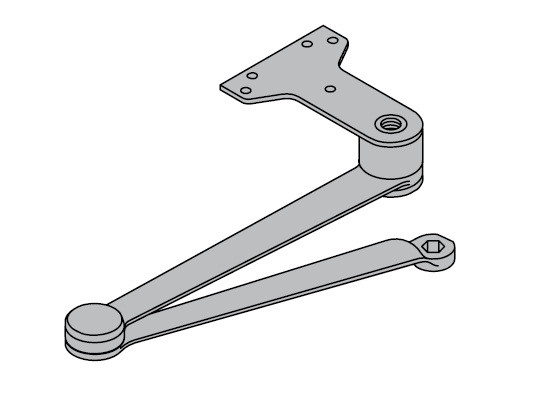

Hold Open Extra Duty Arm with thick Hub Shoe: handed parallel arm that features forged, solid steel main and forearm for potentially abusive installations. Here, 62G shoe provides the additional blade stop clearance. The hold-open function is adjusted at the shoe.

Door Closer Features:

• Satin Nickel finish
• Cast Iron material
• It has double heat treated steel pinion
• All weather fluid is standard
• Handed operation
• UL and cUL listed hardware
• Non-sized (1-6) cylinder is adjustable for interior doors up to 5'0" and exterior doors up to 4'0" wide dimensions
• HEDA (LH) Arm
• Awesome peel-n-stick templates
• Full Compliment Bearing
• 3/4" Journal Diameter Pinion
• Closer meets ADA requirements if installed properly
• LCN patented "Green Dial" Spring Force Indicator
