Product Description

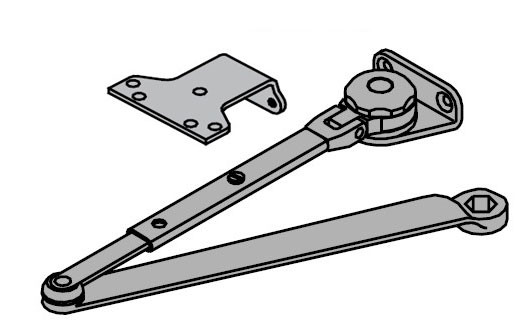

4040XP-Hw-PA-US15 LCN Surface Mount Door Closer Hold Open Arm with Parallel Arm Shoe in Satin Nickel Finish

The Surface Mounted 4040XP is LCN's most durable and flexible heavy duty closer specifically designed for the institutional and other demanding high traffic applications.

Hold Open Arm with Parallel Arm Shoe: non-handed parallel arm that includes 4040XP-62PA required for parallel arm mounting. Hold-open arm is adjustable at shoe.

Door Closer Features:

• Satin Nickel finish
• Cast Iron material
• It has double heat treated steel pinion
• All weather fluid is standard
• Non-handed operation
• UL and cUL listed hardware
• Non-sized (1-6) cylinder is adjustable for interior doors up to 5'0" and exterior doors up to 4'0" wide dimensions
• This Closer can be mounted with parallel arm on either a right hand or a left hand swinging door
• Awesome peel-n-stick templates
• Full Compliment Bearing
• 3/4" Journal Diameter Pinion
• Closer meets ADA requirements if installed properly
• LCN patented "Green Dial" Spring Force Indicator
