Product Description

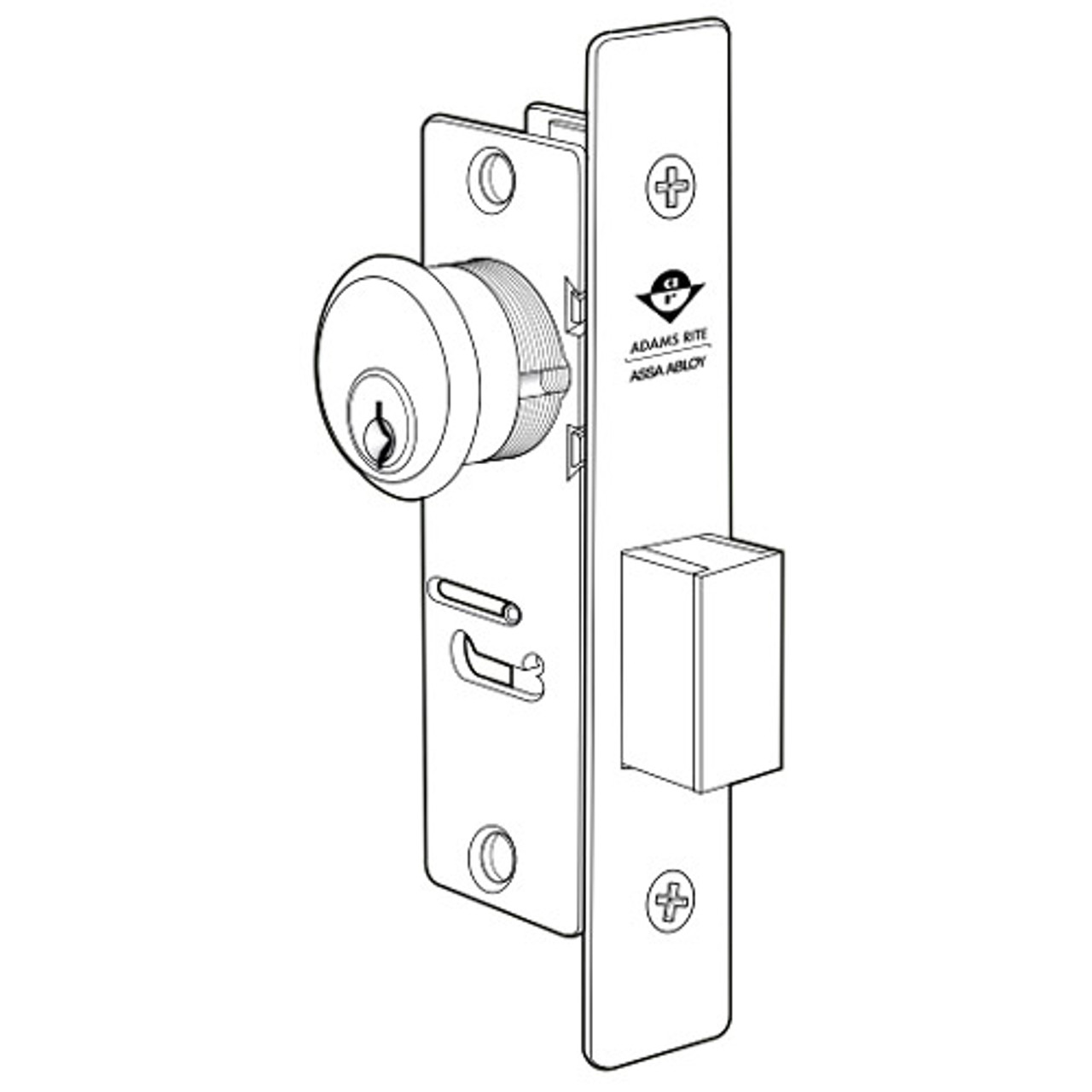

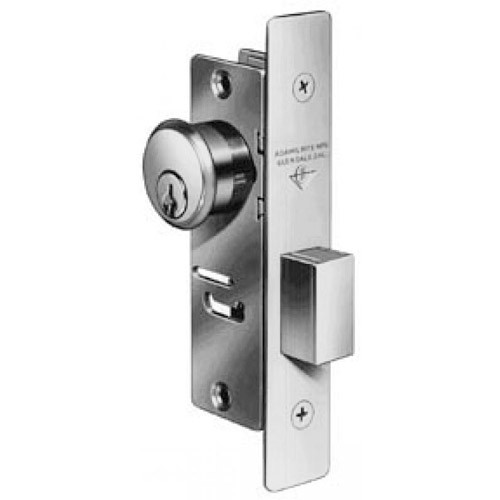

4070-35-628 Adams Rite 4070 Series Short Throw Deadbolt with Flat Faceplate and 1-1/8" Backset in Clear Anodized Finish

The 4070-35-628 series Deadlocks provides security for a conventionally projected bolt in installations where the long-throw MS Deadlock cannot be used. This smaller 4070 offers the longest practical throw for a conventionally projected bolt from a narrow stile. It operates in such a way that the 180 degree turn of key or thumbturn projects or retracts the bolt and it functions with one-half key turn of any standard mortise type cylinder or cylinder type thumbturn. This product is not designed for use in bottom rail. The lock accepts any standard 1-5/32" diameter mortise cylinder from either or both sides. The cylinder must have special cam to fit.

Benefits and Features:

• Clear Anodized finish
• Cylinder Backset: 1-1/8"
• Case is made of stainless steel with corrosion-resistant plating that measures 1" x 6" x depth (depth varies by backset)
• Bolt measures 5/8" x 1-1/4" x 5/8" throw
• Flat faceplate measures 1" X 5-5/8"
• Handed operation - LH or RHR (Left Hand or Right Hand Reverse door)
• 4070 Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS cam
• Grade 2 strength
• 5 year limited manufacturer's warranty is included

Individually boxed with machine screws for mounting. Cylinders and/or thumbturns available separately.
