Product Description

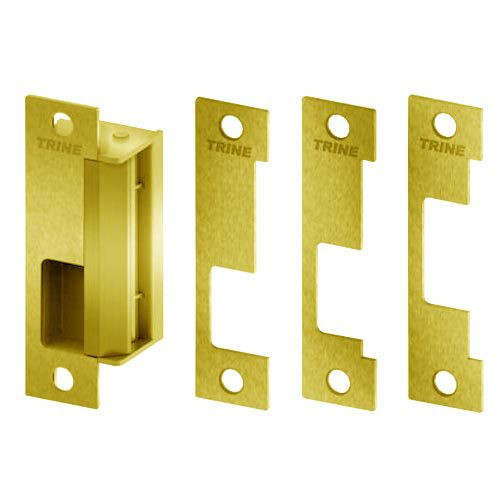

4100-US3 Trine Access Technology 4100 Series Fail Secure Cylindrical and Mortise Lock Electric Strike in Bright Brass Finish

The Trine 4100-US3 Electric strike series is designed for use with cylindrical lockset, mortise lock without deadbolts and mortise exit device. The 4100 series are certified to ANSI/BHMA A156.5 Grade 1.

Features and Benefits:

• Bright Brass finish
• 1 - 3/8" shallow backset
• Four faceplates are included
• 3250 lbs holding force
• UL listed - 1034 burglary resistant
• UBC 7-2, Uniform building Code.
• The 4100 Trine series are certified to BHMA Grade 1
• Fail-secure
• Regular and Torx screws are included and 2 trim skirts provided
• Voltage: 12 and 24DC, 12-24 AC
• Works with the Schlage L series and Yale 8700 series without relocating mounting tabs
