Product Description

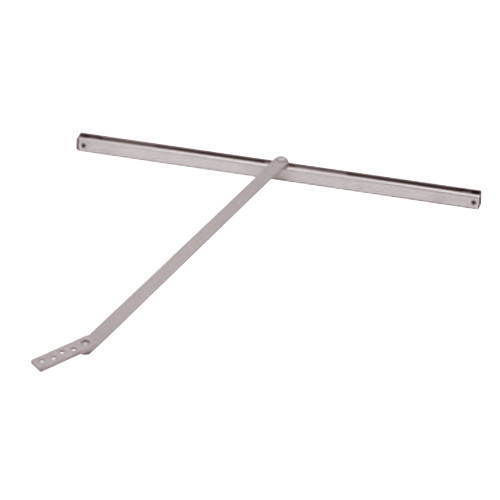

412S-US32D-SE Glynn Johnson 410 Series Medium Duty Concealed Overhead Special Stop Only in Satin Stainless Steel Finish
The Glynn Johnson 412S-US32D-SE 410 Series concealed overhead door stops are designed for the medium to light duty applications and provides protection for the door, frame, hinges and surrounding walls and they are ideal for openings that are subject to normal activity. These models offer the industry's widest variety of functions, base materials and finishes to fit all medium to light-duty applications. These versatile models can be used with most surface applied door closers and provided templates allow for variable mounting positions, ranging from 85 to 110 degrees of opening. The 410 series is constructed from stainless steel material and provides durable life and is easy to install.
When stop-only models are used in conjunction with single-point, hold-open electronic door closers, the stop-only function may be ordered less the shock absorbing mechanism. These are used as an auxiliary stop, these optional models prolong the life of the closer. The stop location is adjusted using an Allen wrench on the stop block located in the channel.
Features and Benefits:
- Satin Stainless Steel finish
- Non handed
- Concealed overhead
- Special stop only medium duty
- 410 Series
- For the interior applications
- Single and double acting doors
- Improved corrosion resistance
- Door openings with a range of 23-1/16"-27"
- Improved compatibility with door closers
- Stop only function for use with single point hold-open electronic closers
