Product Description

4216-CUSH-RH-US26 LCN High Security Surface Mount Door Closer with Cush Arm in Bright Chrome Finish

The Surface Mount LCN 4216 Smoothee Series is a heavy duty, high security door closer with special components to minimize the tampering and vandalism of the device. It has forged steel parallel arms and heavy gauge metal security covers that are specifically designed for correctional, vandal prone, institutional and other high traffic applications. The door closer has passed 10 million cycles in in independent testing. The choice of finishes and cylinder functions meet all the correctional and vandal resistant requirements.

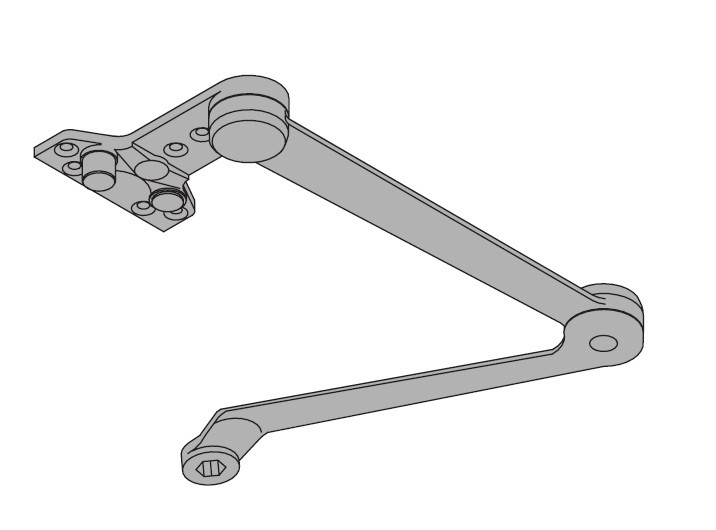

Cush-N-Stop Arm: non-handed parallel arm that features a solid forged steel main arm and forearm with built-in stop in soffit shoe. It has double slab arm/pinion attachment with it for the maximum strength.

Door Closer Features:

• Bright Chrome finish
• Cast Iron material
• Handed Operation
• All weather fluid is standard
• CUSH (RH) Arm
• UL and cUL listed hardware
• Interior door width: 54" to 60"
• Exterior door width: 42" to 48"
• The Closer mounts in parallel arm (push side mount) of the door
• LCN patented "Green Dial" Spring Force Indicator
