Product Description

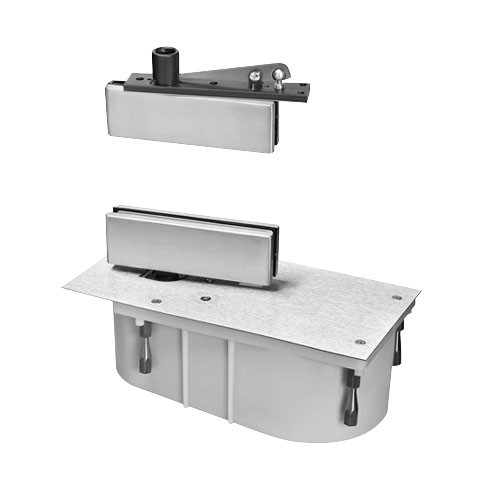

428-105N-LFP-RH-629 Rixson 428 Series Heavy Duty Single Acting Center Hung Floor Closer with Patch Fittings in Bright Stainless Steel Finish

The Rixson 428-105N-LFP-RH-629 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. The weight of the door is supported by the bottom arm and floor. This is ideal for single acting exterior or interior doors. These 428 Series heavy-duty floor closers are certified to ANSI/BHMA A156.4 standards.

Features and Benefits:

• Bright Stainless Steel finish
• Mounting Style: Offset
• Frame stop required at header on lock side
• Handing: Right handed, Single acting
• Non hold-open
• Built-in positive dead stop prevents door from swinging 105 degree
• Weight to 325 lbs.
• Floor plate is not included
• Door Width up to 3'2" x 8'0"
• Cycolac, rustproof cement case
• Standard top pivot: 7494*PK included
• Heavy duty center hung concealed floor closers
• Top and bottom patch fittings for tempered glass doors 3/8" - 1/2" thick
• Non fire rated
