Product Description

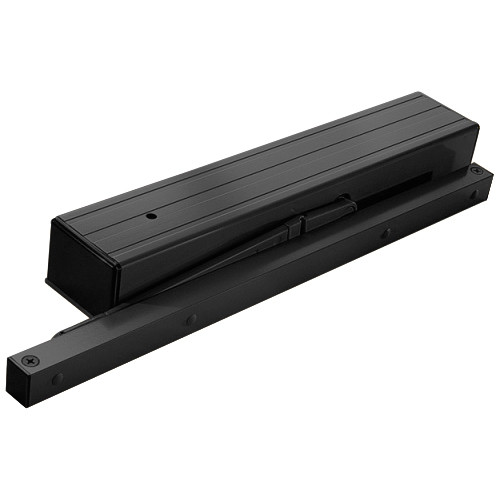

4314ME-DE-RH-120V-AC/DC-BLACK LCN Multi Point Hold Open Door Closer with Double Egress Arm in Black Finish

The LCN 4314ME Sentronic series is a heavy duty, electrically controlled door closer/holder that is perfectly designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the mechanism and the door closes. Its single lever (track) arm closer is specifically designed for the interior doors. The choice of finishes, cylinder functions and installation accessories meet virtually all the life safety requirements

Double Egress Arm: handed arm for double egress doors and frames

Door Closer Features:

• Black finish
• Cast Iron material
• All weather fluid is standard
• Handed-operation
• Double Egress (RH) Arm
• UL and cUL listed hardware
• Concealed or exposed electrical connections
• Sized cylinders for interior doors up to 4'0" wide dimensions
• It has built-in 'On/Off' switch assembly that provides the continuous hold-open function
• It functions as full rack and pinion door closer when hold-open function is not engaged or the current is interrupted with swing-free arm engaged
• Swing-Free arm allows door to be moved without door closer resistance
• It interfaces with the fire alarm systems for safety
• Interior door width: 34" to 48"
• Closer mounts on hinge (pull side) mount of the door
• Closer meets ADA requirements if installed properly
