Product Description
4314ME-SF-RH-120V-AC/DC-LTBRZ LCN Multi Point Hold Open Door Closer with Swing Free Arm in Light Bronze Finish
The LCN 4314ME Sentronic series is a heavy duty, electrically controlled door closer/holder that is perfectly designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the mechanism and the door closes. Its single lever (track) arm closer is specifically designed for the interior doors. The choice of finishes, cylinder functions and installation accessories meet virtually all the life safety requirements

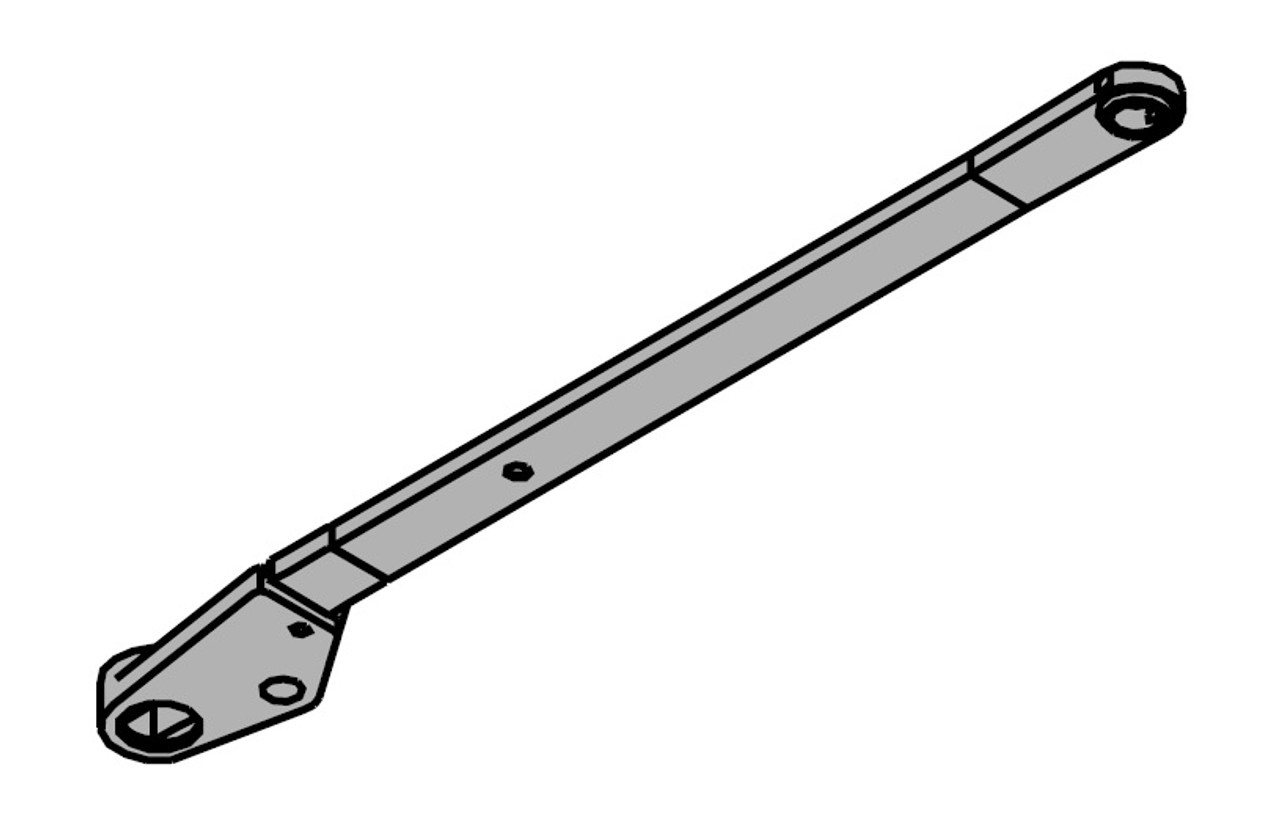

Swing Free Arm: Handed arm. After the door is placed in hold-open, secondary pivot point allows up to 160 degree swing without the door closer resistance
Door Closer Features:
- Light Bronze finish
- Cast Iron material
- All weather fluid is standard
- Handed operation
- Closer mounts on hinge (pull side) mount of the door
- UL and cUL listed hardware
- Concealed or exposed electrical connections
- SF (RH) Arm
- Interior door width: 34" to 48"
- Closer meets ADA requirements if installed properly
- It has built-in 'On/Off' switch assembly that provides the continuous hold-open function
- It functions as full rack and pinion door closer when hold-open function is not engaged or the current is interrupted with swing-free arm engaged
- Swing-Free arm allows door to be moved without door closer resistance
- It interfaces with the fire alarm systems for safety
- Sized cylinders for interior doors up to 4'0" wide dimensions
