Product Description

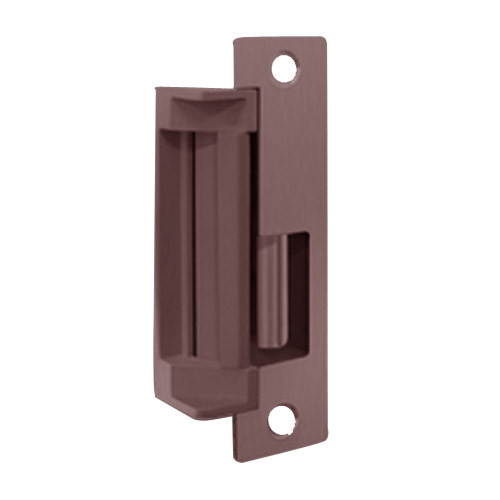

4500C-613 Hes Electric Strike in Bronze Toned Finish

The 4500C series heavy duty electric strike is the low profile fire-rated solution that is specifically designed for installation in 2" UL 10C fire-rated frames with ½" drywall penetration. It features a low profile 1-3/8" depth with heavy-duty stainless steel construction material. The Hes 4500C series provides the good strength that is derived from a unique keeper pin locking design and thus enabling the 4500C to exceed the ratings of the frame, door and locking hardware as well. The 4500C is available with two faceplates perfectly designed to accommodate either cylindrical or mortise locksets up to a 3/4" throw latchbolt.

Benefits and Features:

• Bronze Toned Finish
• Durable stainless steel construction material for good strength
• Field selectable between fail safe and fail secure
• Grade 1 strength
• Dual Voltage 12 or 24 VDC/VAC selectable
• Tamper resistant hardware to keep unwanted people out
• Included two piece plug connectors are furnished for ease of installation and for removal during strike servicing
• Non-handed operation provides greater flexibility
• Installs on metal or wood frames
• Fire rated UL 10C, 3 hour (fail secure)
• UL 1034 burglary-resistant listed hardware
• Electric Strike Complete with faceplates to accommodate most cylindrical and mortise locksets up to a 3/4" throw latchbolt
• Includes internally mounted solenoid as always
• Static strength 3,000 lbs. is very strong
• Dynamic strength 100 ft-lbs.
• Endurance 1,000,000 cycles in Hes labs
• Horizontal adjustment
• Five year limited warranty is included
• The 4500C Complete Pac includes 4500 strike body, 2 faceplates and mounting hardware
