Product Description
4511-EDA-RH-US10 LCN High Security Surface Mount Door Closer with Extra Duty Arm in Satin Bronze Finish
The Surface Mount LCN 4511 Smoothee Series is a heavy duty, high security door closer with special components to minimize the tampering and vandalism of the device. It has forged steel double lever arms and heavy gauge metal security covers that are specifically designed for correctional, vandal prone, institutional and other high traffic applications. The door closer has passed 10 million cycles in independent testing. The choice of finishes and cylinder functions meet all the correctional and vandal resistant requirements.

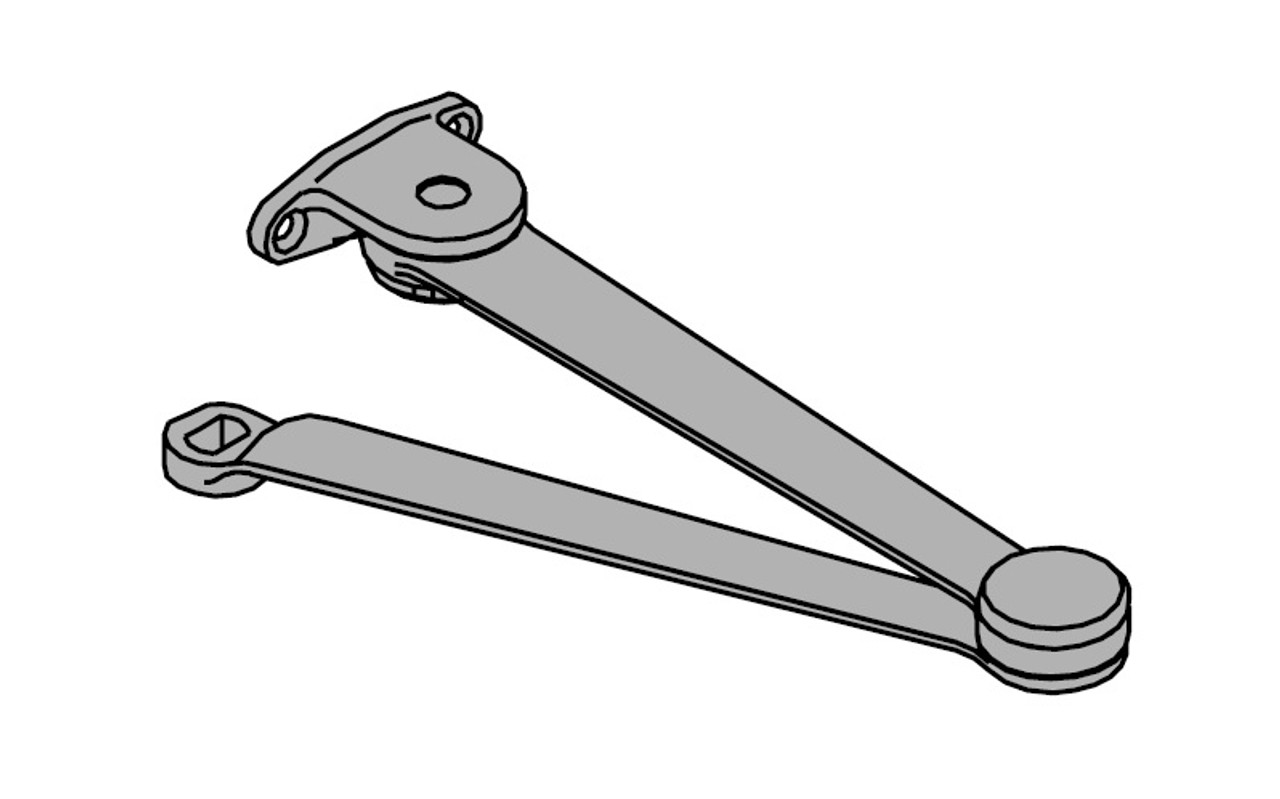

Extra Duty Arm:Â non-handed parallel arm that features a solid forged steel main arm and forearm for potentially abusive installations. It has double slab arm/pinion attachment for the maximum strength.
Door Closer Features:
- Satin Bronze finish
- Cast Iron material
- Handed Operation
- All weather fluid is standard
- EDA (RH) Arm
- UL and cUL listed hardware
- Non-sized (1-5) cylinder is adjustable for interior doors up to 4'6" wide and for exterior doors up to 3'6" wide
- Closer meets ADA requirements if installed properly
- The Closer mounts in hinge (pull) side mounting of the door
- LCN patented "Green Dial" Spring Force Indicator
