Product Description

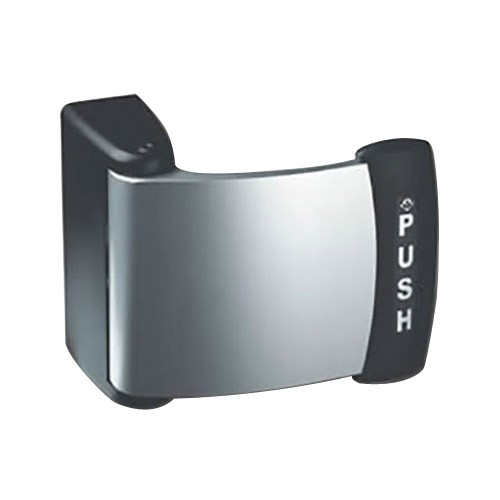

4591M-14-03-628 Adams Rite Deadlatch Paddle for MS+1890 and 2190 Series in Clear Anodized Finish

The 4591M-14-03 series Deadlatch paddle is ergonomically friendly and easy to operate with a simple push or pull. This paddle is an awesome alternative to knob or lever handles that makes the opening of a latched door as natural as opening an unlatched one by pushing or pulling in the direction it swings. It is available for Adams Rite MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch.

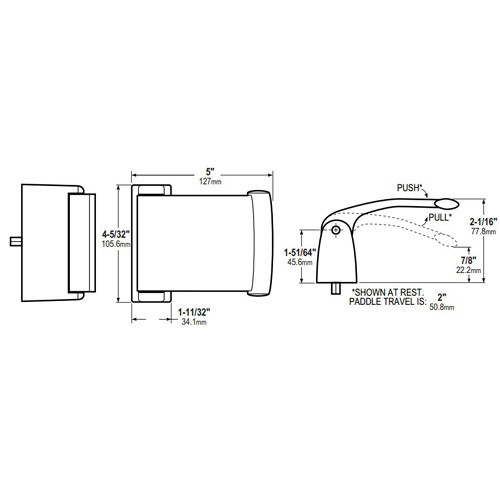

Recommended for door thickness from 2-9/16" to 2-3/4" (inches)

Benefits and Features:

• Clear Anodized Finish
• Cast aluminum construction
• Paddle with switch only and no latch activator
• Paddle without latch drive mechanism but with switch that can be wired to make or break a low voltage circuit
• Handed operation
• PUSH to Right handing operation
• It is used on outside of right hand door or inside of left hand reverse
• Compatibility with MS+1890 Deadlock/Latch and 2190/2290 Interconnected Deadbolt/Deadlatch
• For door thickness from 2-9/16" to 2-3/4"
• Highly secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction
• Escutcheon is of zinc alloy with black finish that houses steel operating mechanism
• 3 year limited manufacturer's warranty is included

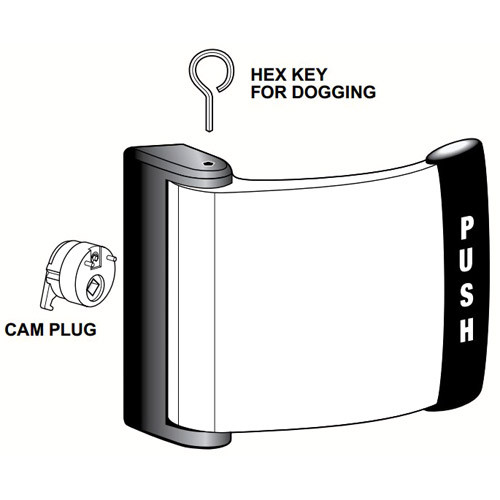

Individually boxed with dogging hex key and mounting hardware.
