Product Description

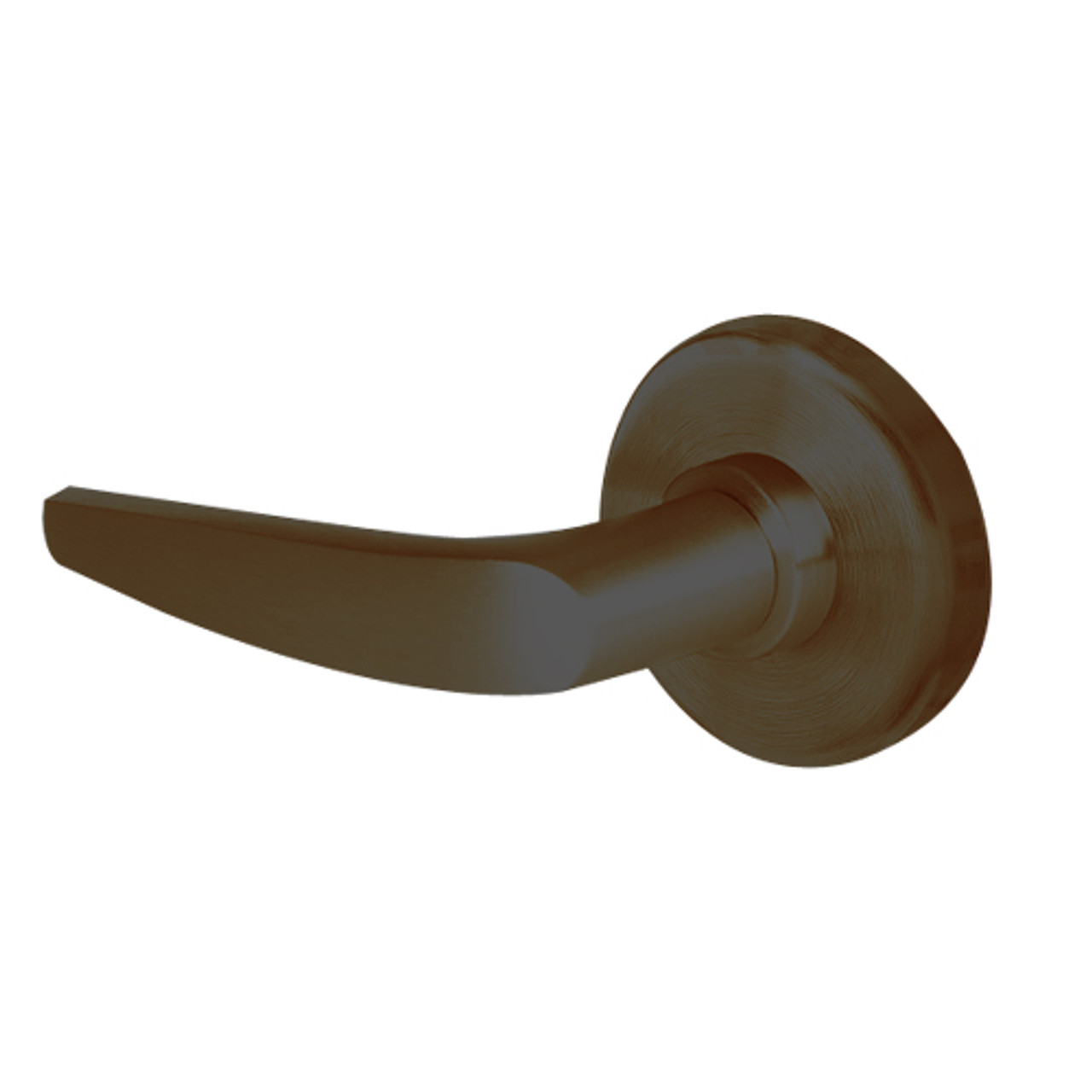

45H0L16S613 Best 40H Series Privacy with Deadbolt Heavy Duty Mortise Lever Lock with Curved with No Return in Oil Rubbed Bronze Finish

The Best 45H0L16S613 Series mortise lock provides toughest mechanical security for your building. The 40H series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 40H series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

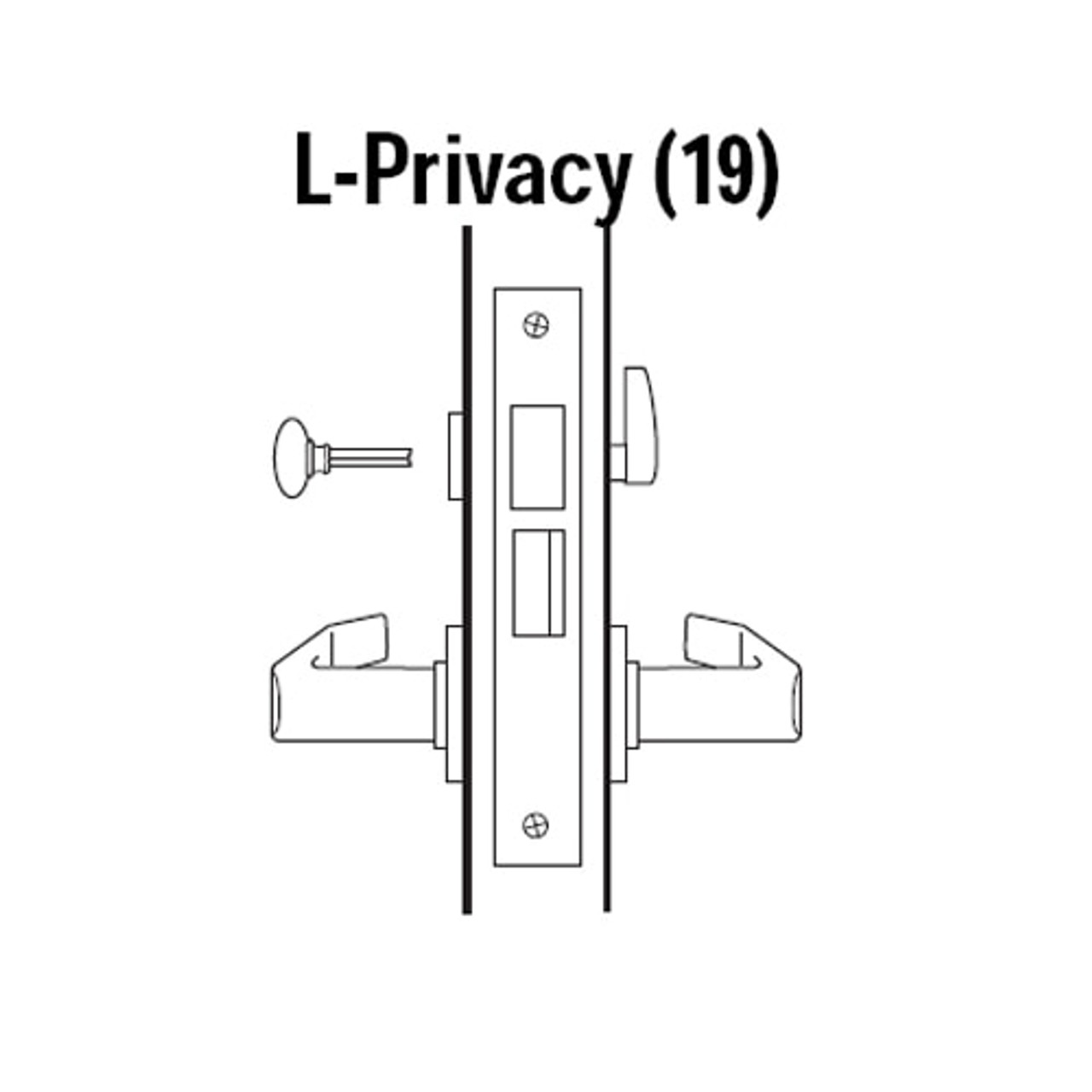

Privacy lock with deadbolt: Latch operated by rotating inside lever and rotating outside lever only when deadbolt is retracted. Outside lever deadbolt operated by Turning the emergency key, turning inside turn lever. Outside lever always locked. Inside lever can not be locked.

Features and Benefits:

• Oil Rubbed Bronze finish
• Backset: 2-3/4" standard
• Handing: Reversible
• Non keyed function
• Roses: S - Flat with beveled edge, 3-1/2" diameter.
• Lever: Curved/no return
• Door thickness: 1-3/4" Standard
• Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
• Latchbolt: Solid stainless steel, 3/4" throw.
• Deadbolt: Stainless steel, 1" throw.
• Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
• Self-aligning trim mechanism for fast, easy, and accurate installation.
