Product Description

45H0NX16H630 Best 40H Series Exit Function Heavy Duty Mortise Lever Lock with Curved with No Return in Satin Stainless Steel Finish

The Best 45H0NX16H630 Series mortise lock provides toughest mechanical security for your building. The 40H series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 40H series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

Exit Function: Latch operated by rotating inside lever/knob. Outside lever/knob always locked. Inside lever/lmpb always unlocked.

Features and Benefits:

• Satin Stainless Steel finish
• Backset: 2-3/4" standard
• Handing: Reversible
• Non keyed function
• Roses: H - Flat with round edge, 2-3/4" diameter.

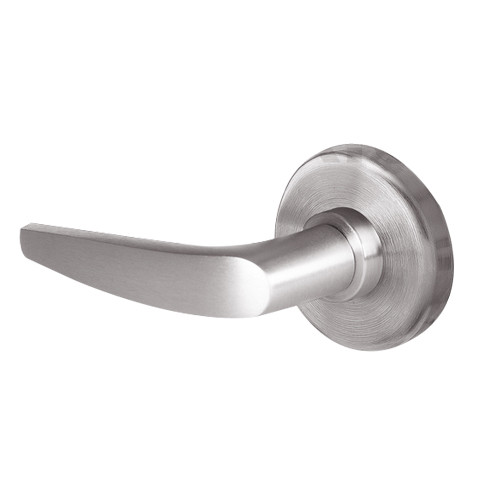

• Lever: Curved/no return
• Door thickness: 1-3/4" Standard
• Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
• Latchbolt: Solid stainless steel, 3/4" throw.
• Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
• Self-aligning trim mechanism for fast, easy, and accurate installation.
