Product Description

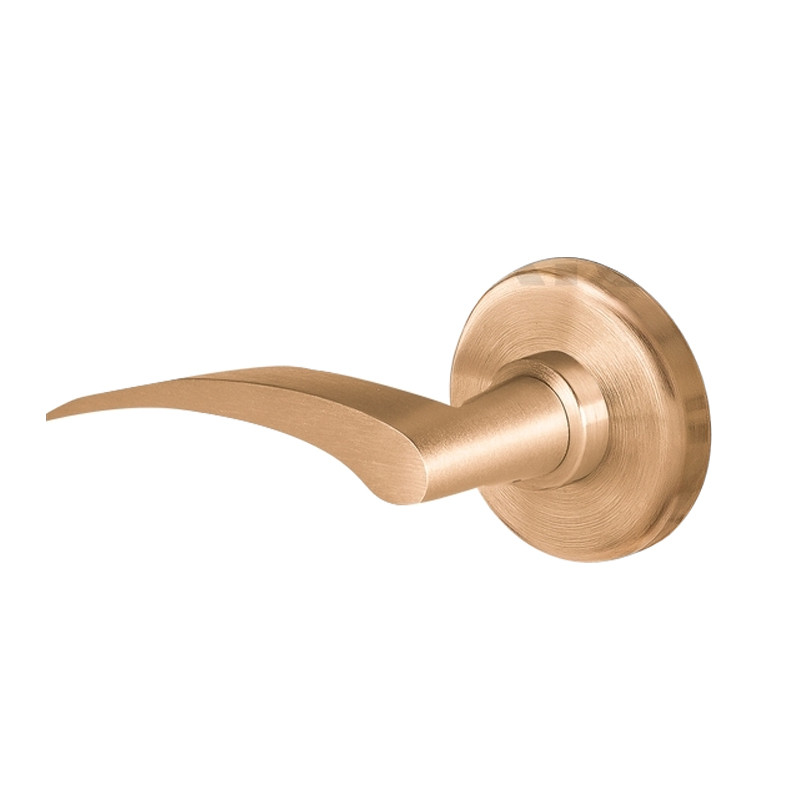

45H7A17LR612 Best 40H Series Office Heavy Duty Mortise Lever Lock with Gull Wing LH in Satin Bronze Finish
The Best 45H7A17LR612 Series mortise lock provides toughest mechanical security for your building. The 40H series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 40H series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

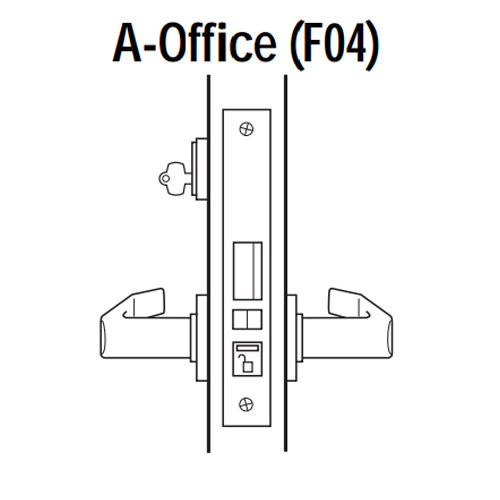

Office lock: Latch operated by rotating inside lever and Rotating outside lever– only when locking toggle is in unlocked position and turning key in outside cylinder. Outside lever locked by placing locking toggle in locked position and unlocked by placing locking toggle in unlocked position. Inside lever can not be locked.
Features and Benefits:
- Satin Bronze finish
- Backset: 2-3/4" standard
- Handing: Left Handed
- Single keyed function
- Core is not included
- 7-pin housing accepts all BEST cores
- Roses: R - Contoured with round edge, 2-3/4" diameter.
- Lever: Curved/no return
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Deadbolt: Stainless steel, 1" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
