Product Description

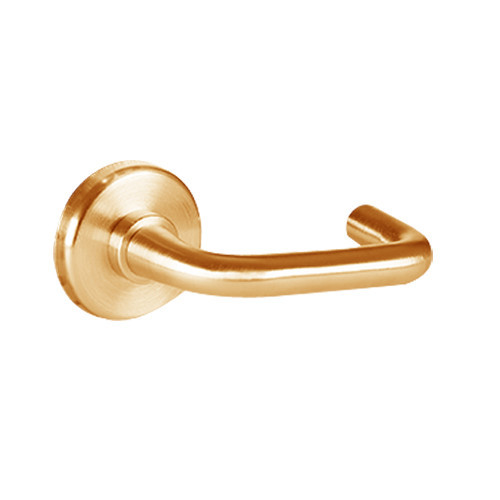

45H7AT3R612VIB Best 45H Series Office Heavy Duty Mortise Lever Lock with Solid Tube Return Style and Double Visual Indicator in Satin Bronze Finish
The Best 45H7AT3R612VIB Series mortise lock provides toughest mechanical security for your building. The 45H Series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 45H Series are certified to ANSI A156.13, Series 1000, Grade 1 operation.
Office lock: Latch operated by rotating inside lever and Rotating outside lever only when unlocked by key or turn lever and turning key in outside cylinder. Outside lever locked by turning inside leve and turning key in outside cylinder. Inside lever can not be locked.
Features and Benefits:
- Satin Bronze finish
- Backset: 2-3/4" standard
- Double Visual Indicator
- Handing: Reversible
- Single keyed function
- Core is not included
- 7-pin housing accepts all BEST cores
- Roses: R - Contoured with round edge, 2-3/4" diameter.
- Lever: Solid tube with return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Deadbolt: Stainless steel, 1" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
