Product Description
45H7R16H630VIN Best 45H Series Classroom Heavy Duty Mortise Lever Lock with Curved with No Return and Visual Keyed Indicator in Satin Stainless Steel Finish
The Best 45H7R16H630VIN Series mortise lock provides toughest mechanical security for your building. The 45H Series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 45H Series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

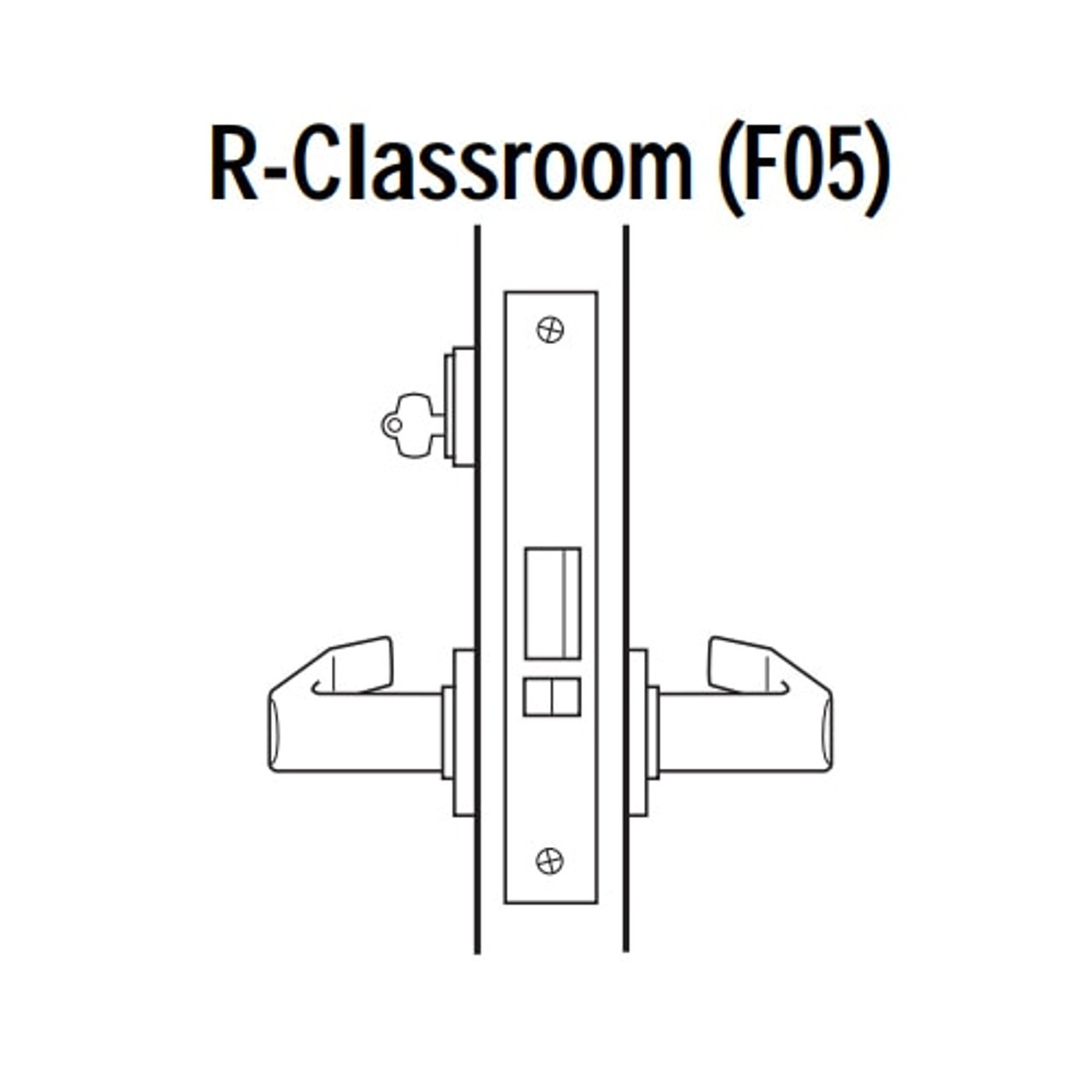

Classroom lock: Latch operated by rotating inside lever and Rotating outside lever only when unlocked by key and turning key in outside cylinder. Outside lever locked by turning key in outside cylinder. Inside lever can not be locked.
Features and Benefits:
- Satin Stainless Steel finish
- Backset: 2-3/4" standard
- Visual Keyed Indicator
- Handing: Reversible
- Single keyed function
- Core is not included
- 7-pin housing accepts all BEST cores
- Roses: H - Flat with round edge, 2-3/4" diameter.
- Lever: Curved/no return
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Deadbolt: Stainless steel, 1" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
