Product Description

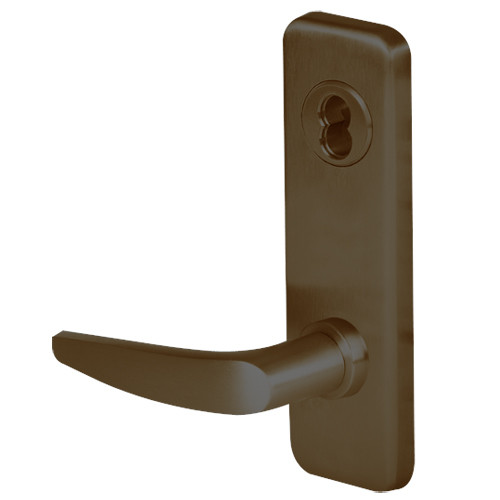

45H7S16J613 Best 40H Series Storeroom with Deadbolt Heavy Duty Mortise Lever Lock with Curved with No Return in Oil Rubbed Bronze Finish

The Best 45H7S16J613 Series mortise lock provides toughest mechanical security for your building. The 40H series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 40H series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

Storeroom lock with deadbolt: Latch operated by rotating inside lever, rotating outside lever only when locking toggle is in unlocked position and deadbolt is retracted, turning key in inside or outside cylinder. Outside lever deadbolt operated by Turning key in outside or inside cylinder. Inside lever locked by extending the deadbolt.

Features and Benefits:

• Oil Rubbed Bronze finish
• Backset: 2-3/4" standard
• Handing: Reversible
• Double keyed function
• Core is not included
• 7-pin housing accepts all BEST cores
• Roses: J - Escutcheon

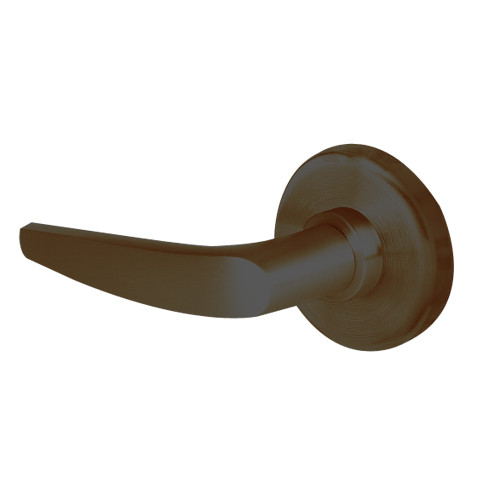

• Lever: Curved/no return
• Door thickness: 1-3/4" Standard
• Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
• Latchbolt: Solid stainless steel, 3/4" throw.
• Deadbolt: Stainless steel, 1" throw.
• Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
• Self-aligning trim mechanism for fast, easy, and accurate installation.
