Product Description
45H7T15S612VIT Best 45H Series Dormitory with Deadbolt Heavy Duty Mortise Lever Lock with Contour with Angle Return Style and Visual Thumbturn Indicato in Satin Bronze Finish
The Best 45H7T15S612VIT Series mortise lock provides toughest mechanical security for your building. The 45H Series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 45H Series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

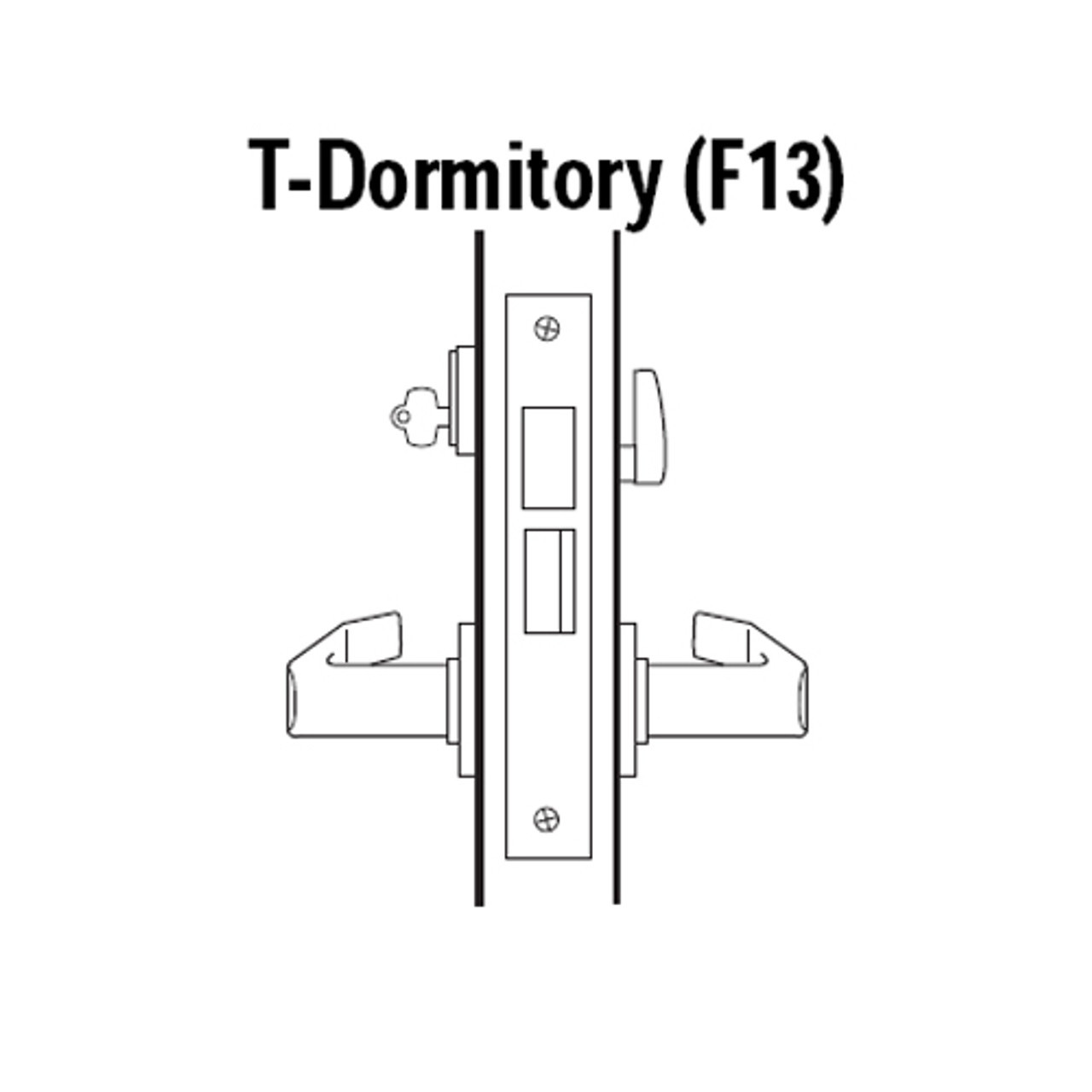

Dormitory lock with deadbolt: Latch operated by rotating inside lever and Rotating outside lever - only when deadbolt is retracted, turning key in outside cylinder. Deadbolt operated by Turning key in outside cylinder, Inside turn lever and Inside lever retracts deadbolt and latch simultaneously. Outside lever locked by turning key in outside cylinder, turning inside turn lever. Inside lever can not be locked.
Features and Benefits:
- Satin Bronze finish
- Backset: 2-3/4" standard
- Visual ThumbTurn Indicator
- Handing: Reversible
- Single keyed function
- Core is not included
- 7-pin housing accepts all BEST cores
- Roses: S - Flat with beveled edge, 3-1/2" diameter.
- Lever: Contour with angle return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Deadbolt: Stainless steel, 1" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
