Product Description

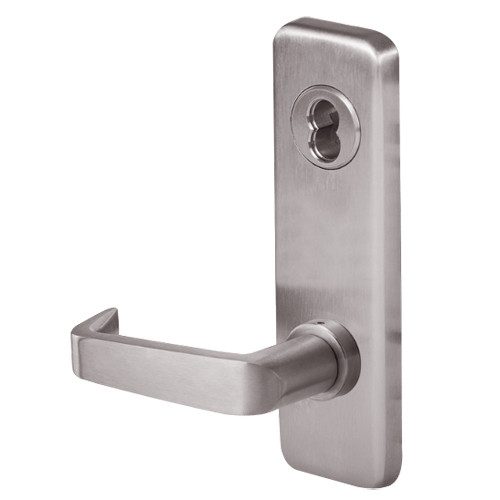

45H7TA15J630 Best 40H Series Dormitory with Deadbolt Heavy Duty Mortise Lever Lock with Contour with Angle Return Style in Satin Stainless Steel Finish
The Best 45H7TA15J630 Series mortise lock provides toughest mechanical security for your building. The 40H series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 40H series are certified to ANSI A156.13, Series 1000, Grade 1 operation.
Dormitory lock with deadbolt: Latch operated by rotating inside lever and Rotating O/S lever only when locking toggle is in unlocked position and deadbolt is retracted, Turning key in outside cylinder. Deadbolt operated by Turning key in outside cylinder, Turning inside turn lever. (Rotating inside lever retracts deadbolt and latch simultaneously.) Outside lever locked by Placing locking toggle in locked position, Projecting deadbolt by key or turning inside turn lever. Inside lever can not be locked.
Features and Benefits:
- Satin Stainless Steel finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Single keyed function
- Core is not included
- 7-pin housing accepts all BEST cores
- Roses: J - Escutcheon
- Lever: Contour with angle return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Deadbolt: Stainless steel, 1" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
