Product Description

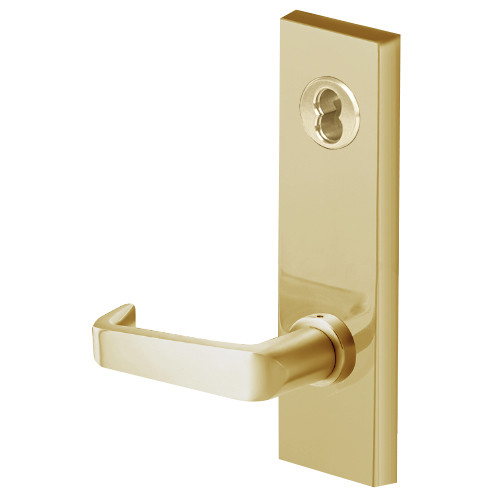

45H7TD15M606 Best 40H Series Dormitory with Deadbolt Heavy Duty Mortise Lever Lock with Contour with Angle Return Style in Satin Brass Finish
The Best 45H7TD15M606 Series mortise lock provides toughest mechanical security for your building. The 40H series is the ideal security solution when strength and dependability are required. Its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. The Best 40H series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

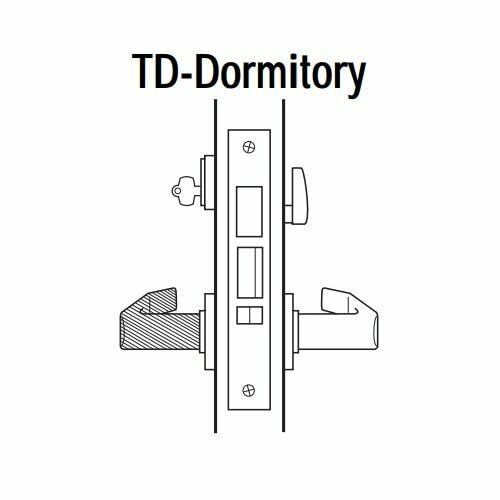

Dormitory lock with deadbolt: Latch operated by rotating inside lever and Turning key in outside cylinder. Outside lever deadbolt operated by Turning inside turn lever,Rotating inside lever retracts deadbolt and latch simultaneously.), Turning key in outside cylinder. Outside lever always locked. Inside lever can not be locked.
Features and Benefits:
- Satin Brass finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Single keyed function
- Core is not included
- 7-pin housing accepts all BEST cores
- Escutcheon: M - Escutcheon
- Lever: Contour with angle return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Deadbolt: Stainless steel, 1" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
