Product Description
45HW7DEL16J613RQE12V Best 40HW series Single Key Latch Fail Safe Electromechanical Mortise Lever Lock with Curved w/ No Return Style in Oil Rubbed Bronze Finish
The Best 45HW7DEL16J613RQE12V Series mortise lock provides toughest electromechanical security for your building. The 40HW series provides a way to lock and unlock the door from a remote location for safety, security, or convenience through an individual switch, switch lock, relay, access control system, or other automatic control system. The Best 40HW series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

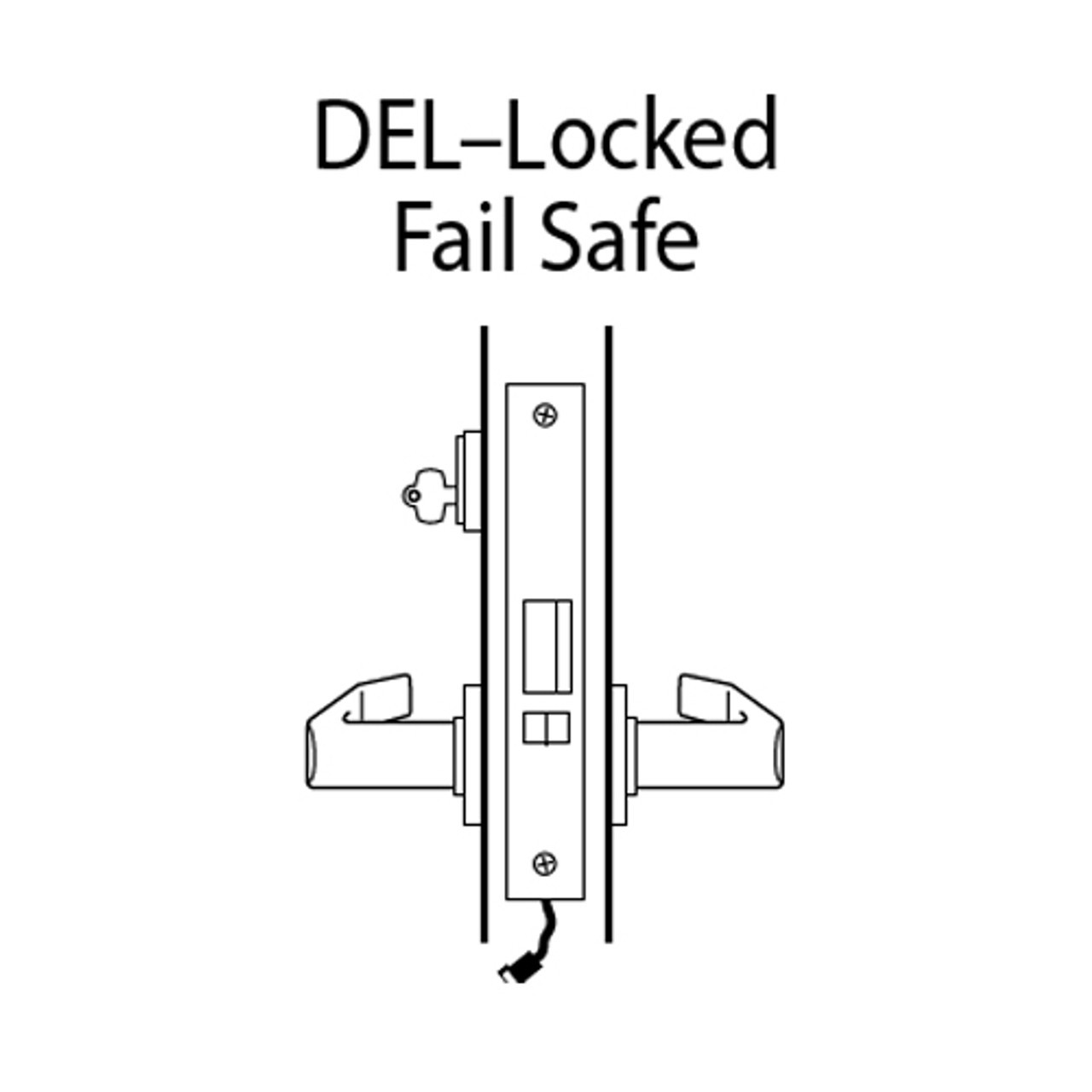

DEL - Locked: Latch operated by Outside lever when power is removed from the solenoid and outside key. Inside lever Latchbolt is deadlocked by an auxiliary latch. Outside lever locked by applying power to solenoid; remains locked while power is on. Inside lever can not be locked.
Features and Benefits:
- Oil Rubbed Bronze finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Single keyed function - Fail Safe
- 12 volts AC or DC - 0.60 amps
- RQE: Request to exit
- Core is not included
- 7-pin housing accepts all BEST cores
- Prepped for sfic
- Trim Style: J Wrought
- Lever: Curved/no return
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
