Product Description

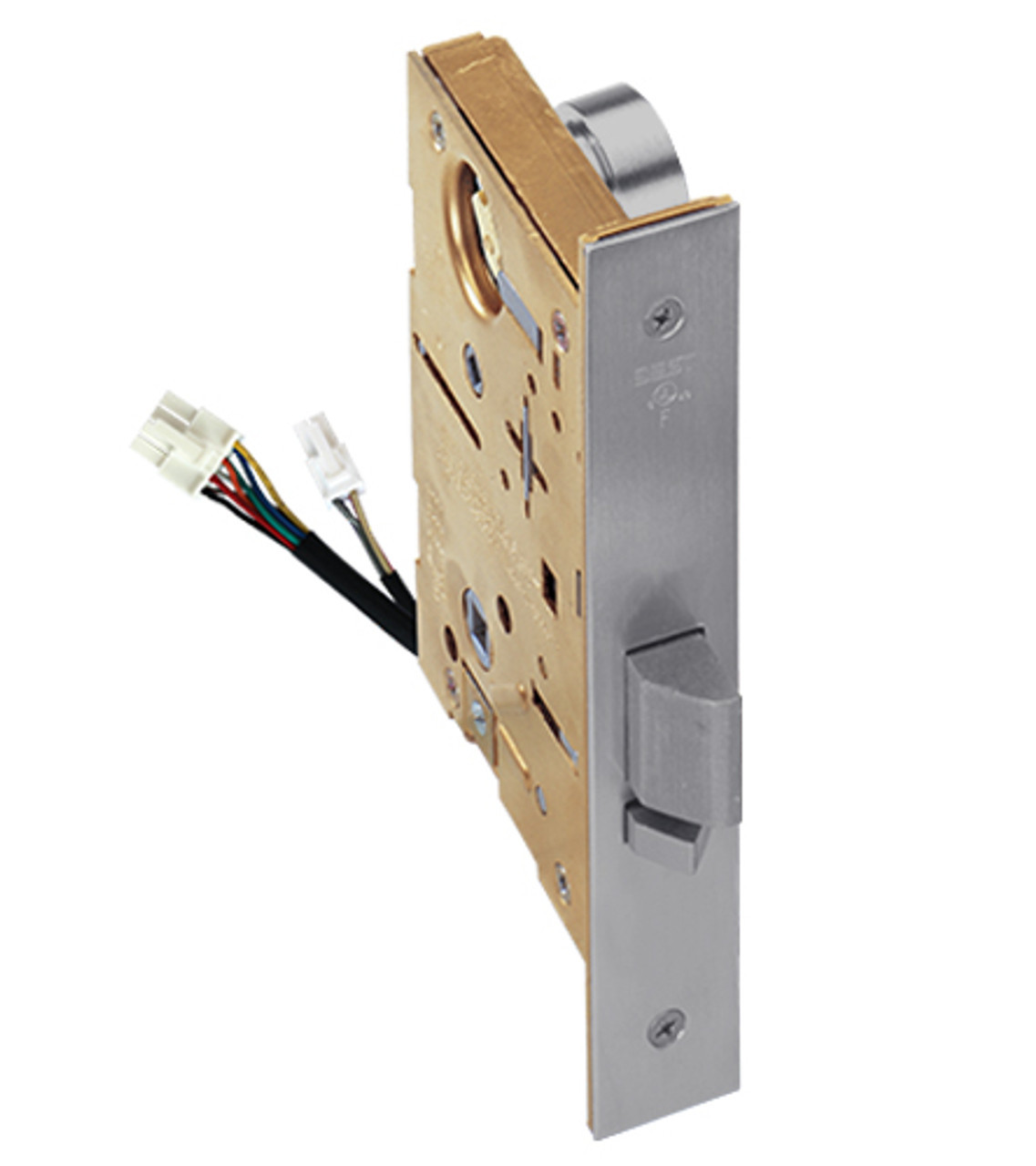

45HW7DEU12J629RQE12V Best 40HW series Single Key Latch Fail Secure Electromechanical Mortise Lever Lock with Solid Tube w/ No Return Style in Bright Stainless Steel Finish
The Best 45HW7DEU12J629RQE12V Series mortise lock provides toughest electromechanical security for your building. The 40HW series provides a way to lock and unlock the door from a remote location for safety, security, or convenience through an individual switch, switch lock, relay, access control system, or other automatic control system. The Best 40HW series are certified to ANSI A156.13, Series 1000, Grade 1 operation.
DEU - Unlocked - fail secure: Latch operated by outside lever when power is applied to the solenoid and outside key. Inside lever Latchbolt is deadlocked by an auxiliary latch. Outside lever locked by removing power from solenoid. Inside lever can not be locked.
Features and Benefits:
- Bright Stainless Steel finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Single keyed function - fail secure
- 12 volts AC or DC - 0.60 amps
- RQE: Request to exit
- Core is not included
- 7-pin housing accepts all BEST cores
- Prepped for sfic
- Trim Style: J Wrought
- Lever: Solid tube with no return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
