Product Description

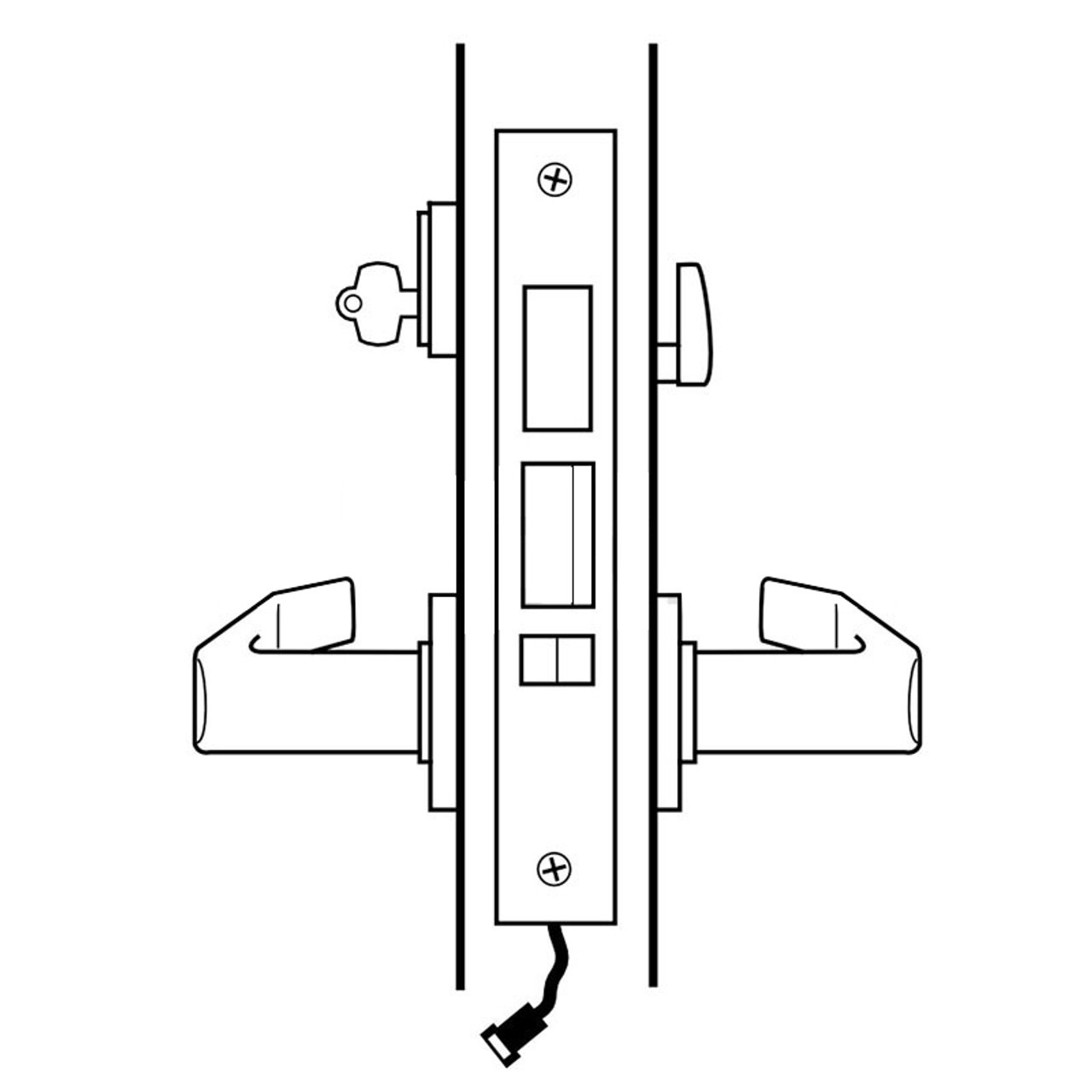

45HW7TDEL15N625RQE12V Best 40HW series Single Key Deadbolt Fail Safe Electromechanical Mortise Lever Lock with Contour w/ Angle Return Style in Bright Chrome Finish
The Best 45HW7TDEL15N625RQE12V Series mortise lock provides toughest electromechanical security for your building. The 40HW series provides a way to lock and unlock the door from a remote location for safety, security, or convenience through an individual switch, switch lock, relay, access control system, or other automatic control system. The Best 40HW series are certified to ANSI A156.13, Series 1000, Grade 1 operation.
TDEL-Fail Safe: Latchbolt operated by outside key or outside lever/knob when power is removed from the solenoid. Latchbolt deadlocked by auxiliary latch. Deadbolt operated by outside key. Outside lever/knob locked by applying power to the solenoid. Outside lever/knob unlocked by removing power from the solenoid. Inside lever/knob is always unlocked.
Features and Benefits:
- Bright Chrome finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Single Keyed function - Fail Safe
- 12 volts AC or DC - 0.60 amps
- RQE: Request to exit
- Core is not included
- 7-pin housing accepts all BEST cores
- Prepped for sfic
- Trim Style: N Forged
- Lever: Contour w/ angle return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Bolt Projection: 3/4" Latch, 1" Deadbolt
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
