Product Description

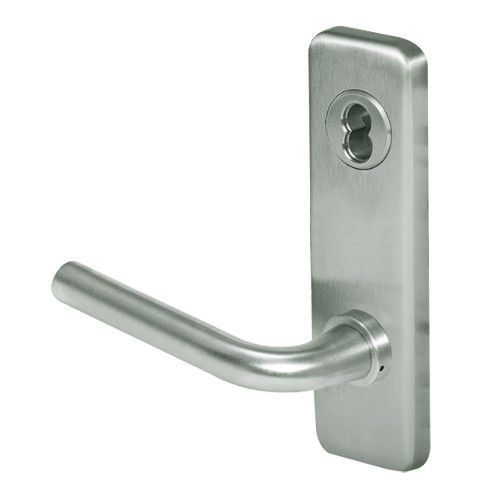

45HW7TWEU12J619RQE Best 40HW series Double Key Deadbolt Fail Secure Electromechanical Mortise Lever Lock with Solid Tube w/ No Return Style in Satin Nickel Finish
The Best 45HW7TWEU12J619RQE Series mortise lock provides toughest electromechanical security for your building. The 40HW series provides a way to lock and unlock the door from a remote location for safety, security, or convenience through an individual switch, switch lock, relay, access control system, or other automatic control system. The Best 40HW series are certified to ANSI A156.13, Series 1000, Grade 1 operation.

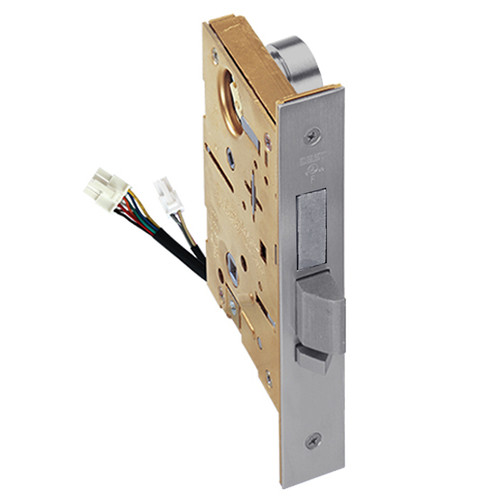

TDEU - Unlocked - fail secure: Latchbolt operated by outside key or outside lever/knob when power is applied to the solenoid. Latchbolt deadlocked by auxiliary latch. Deadbolt operated by outside key. Outside lever/knob locked by removing power from the solenoid. Outside lever/knob unlocked by applying power to the solenoid. Inside lever/knob is always unlocked.
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Double Keyed function - fail secure
- 24 volts AC or DC - 0.45 amps standard
- RQE: Request to exit
- Core is not included
- 7-pin housing accepts all BEST cores
- Prepped for sfic
- Trim Style: J Wrought
- Lever: Solid tube with no return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Bolt Projection: 3/4" Latch, 1" Deadbol
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
