Product Description

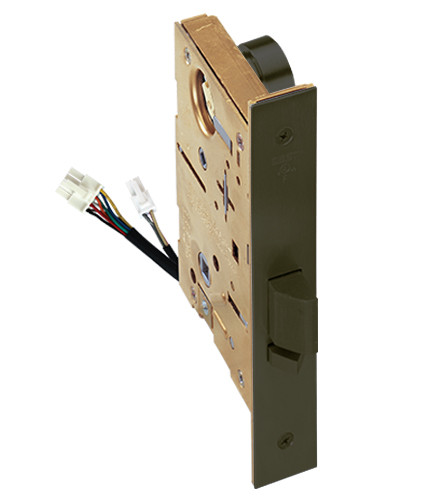

45HW7WEL3R61312V Best 40HW series Double Key Latch Fail Safe Electromechanical Mortise Lock with Solid Tube w/ Return in Oil Rubbed Bronze Finish
The Best 45HW7WEL3R61312V Series mortise lock provides toughest electromechanical security for your building. The 40HW series provides a way to lock and unlock the door from a remote location for safety, security, or convenience through an individual switch, switch lock, relay, access control system, or other automatic control system. The Best 40HW series are certified to ANSI A156.13, Series 1000, Grade 1 operation.
WEL - locked fail safe: Latch operated by Inside or outside lever when power is removed from the solenoid and inside or outside key latchbolt is deadlocked by an auxiliary latch. Inside or outside lever locked by applying power to solenoid; remains locked while power is on.
Features and Benefits:
- Oil Rubbed Bronze finish
- Backset: 2-3/4" standard
- Handing: Reversible
- Double keyed function - fail safe
- 12 volts AC or DC - 0.60 amps
- Core is not included
- 7-pin housing accepts all BEST cores
- Prepped for sfic
- Roses: R - Contoured with round edge, 2-3/4" diameter.
- Lever: Solid tube with return style
- Door thickness: 1-3/4" Standard
- Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T.
- Latchbolt: Solid stainless steel, 3/4" throw.
- Strike: S1 (standard) - 4-7/8" x 1-1/4" x 3/32", curved lip, 1-1/4" lip to center strike
- Self-aligning trim mechanism for fast, easy, and accurate installation.
