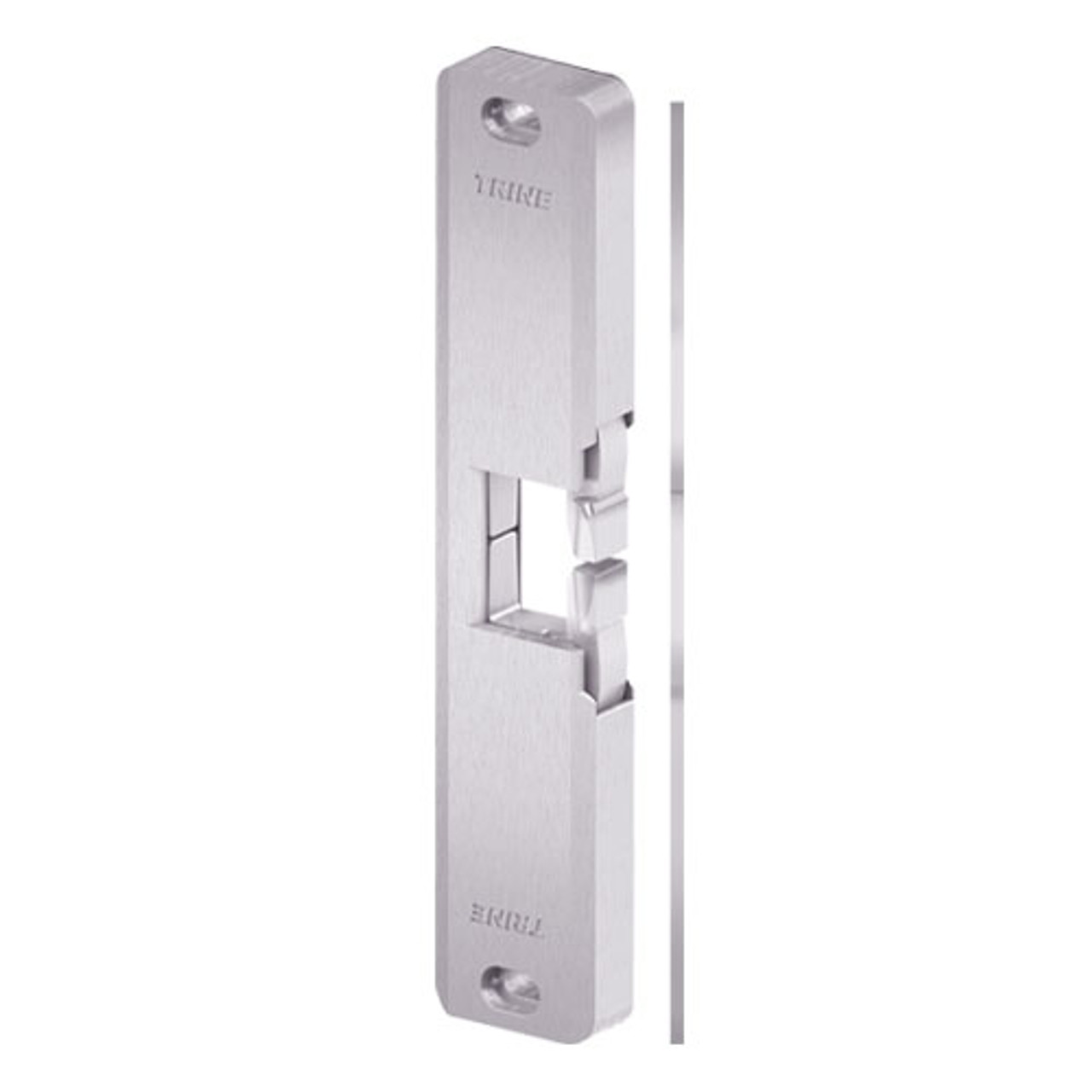

4800F-32 Trine Access Technology 4800F Series Fire Rated Surface Mounted Electric Strike in Polished Stainless Steel Finish

The Trine 4800F-32 3 Hour fire rated electric strike series are used with surface mounted rim exit devices with up to 3/4" throw or greater and for use in new or replacement installations in wood or metal single door frames. The 4800F Series product has been designed to install easily, perform reliably, and provide years of trouble free security.

Features and Benefits:

• Polished Stainless Steel finish
• Strike opening: 1-1/8" W x 1-1/2" H
• 1/8" Spacer Included
• Strike body: 1-3/4" W x 9" H x 3/4" D
• Input voltage: 11 thru 28 AC and DC voltage input
• 3000+ lbs holding force
• Stainless steel construction
• Comes with Trines patented 4-pin anchoring system
• The 4800F Trine series are certified to BHMA Grade 1
• Contains a one piece locking mechanism with one Solenoid
• No cutting or worrying about voltage
• For use with surface mounted rim exit devices
• Class A, 3 Hour Single door/frame configuration
• Fail-safe/Fail-Secure - field selectable (like all electric strikes, it is not fire rated in fail safe mode)
