Product Description

504-S-CW Don Jo Mortise Lock Wrap-around Plate for 86 Cut-out in Stainless Steel Finish

The Don Jo 504-S-CW Wrap Around Plates are the perfect solution for reinforcing doors which communicates an unmistakable message of superb quality with amazing strength while maintaining a beautiful elegance that is usually not associated with door hardware. Its permanent holding power eliminates loosening of latch mounting screws. The 504-S-CW series is available in dimensions 5" x 12" (inches).

Features and Benefits:

• Stainless Steel Finish

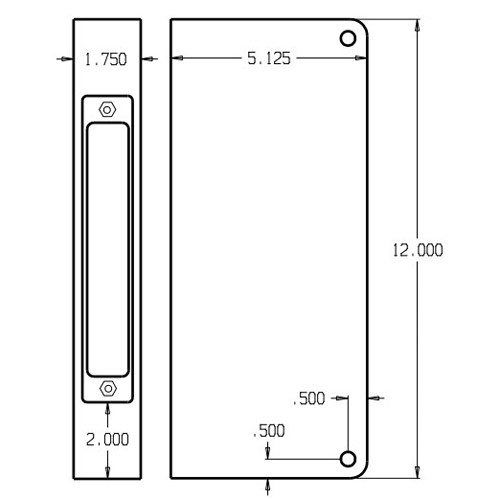

• Dimensions: 5" x 12"
• Door: 1-3/4"
• Guage: 22 (.032)
• 8" x 1 1/4" Recess
• Drill spindle and thumb turn holes in field
• Rectangle size: 1-5/8" x 7-5/16"
• Trim Screws: 1/4-20 x 1 1/2" Sex Nut fasteners
• Trim Screws: 2 ea. 1/4-20 x 3/4" MS Truss Head fasteners
• Latch Screws: 2 ea. #12-24 x 1/2" FHMS fastener
• Mortise Lock Wrap-around Plate for 86 Cut-out
• One year limited manufacturer's warranty is included
