Product Description

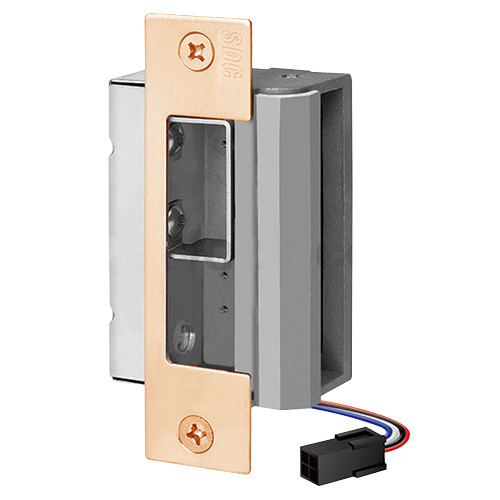

55-EG-LBM SDC 55 Series UniFLEX Heavy Duty Electric Strike with Latchbolt Monitor in Dull Bronze Finish

The SDC 55-EG-LBM electric strike is designed for installation in hollow metal frames for access control of mortise locksets with a deadbolt and no deadlatch. The choice of 55-E application faceplates eliminates the need for centerline relocation, making them ideal for new or retrofit , high security access control applications. The 55-E series is certified to the ANSI A156.31 compliant, Grade 1.

Features and Benefits:

• Dull Bronze finish
• Handing: Non handed
• Latchbolt monitor is included
• Dual voltage 12/24VDC
• Exceeds 1,000,000 cycles
• Factory tested 2500 lbs static strength
• 1/8" Horizontal alignment adjustment
• Field reversible, failsafe/failsecure
• Up to 3/4" Latchbolt and 1" deadbolt
• 70 ft-lb Dynamic strength
• For use with 5/8'' latchbolt, or up to 3/4'' latchbolt with 1/8'' door gap
• Compatible with mortise lockset with deadbolt and no deadlatch
• Locksets with ANSI centerline latch entry lockset with up to 3/4" latchbolt
