Product Description

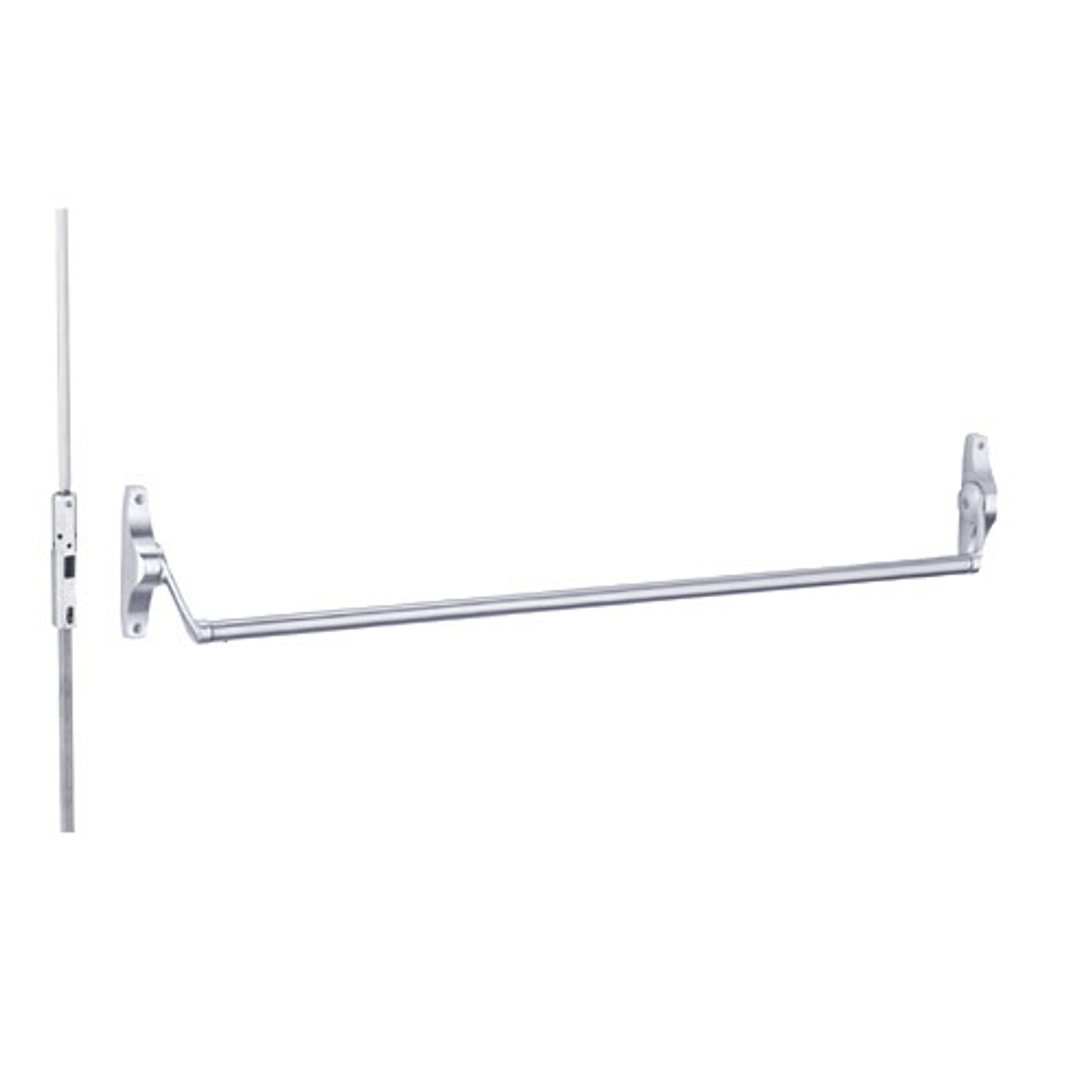

5547EO-F-US26 Von Duprin 5547 Series Exit Only Fire Rated Concealed Vertical Rod Device in Bright Chrome Finish

The Von Duprin 5547EO-F-US26 series of exit device for use on 8' x 8' (2438 mm x 2438 mm) double hollow metal doors swinging same direction and double egress. The 5547 concealed vertical rod device is a traditional crossbar design with wide acceptance because of the streamline appearance and fits doors stiles as narrow as 4-3/4" (121 mm) and standard device fits 6' 8" to 8'0" door height and devices are UL listed for accident hazard and are certified to ANSI A156.3, Grade 1. In the 5547 series double doors swinging same direction using a pair of 5547 fire rated devices must not have an overlapping astragal.

Features and Benefits:

• Bright Chrome finish
• ANSI Function: 01
• Cylinders are not included
• Includes no trim
• Crossbar length: 42" (1067 mm)
• Crossbar height to finished floor: 36-13/16" (935 mm) at center
• Vertical rods hexagon: 3/8" (10 mm) adjustable top rod
• Fasteners: Includes screw pack for 4-3/4" (121 mm) and 2-1/4" (57 mm) thick doors
• All 5547 series exit devices are UL listed for up to 3 hour labeled installations
• Strike: 301L - bottom - unfinished strikes included as always
• Latch bolt: 5/8", throw
• Crossbar tubing: 1" (25 mm)
• Sex nuts and bolts for mounting are included
• Flush transom installations
• Fits doors stiles as narrow as 4-3/4" (121 mm)
