Product Description

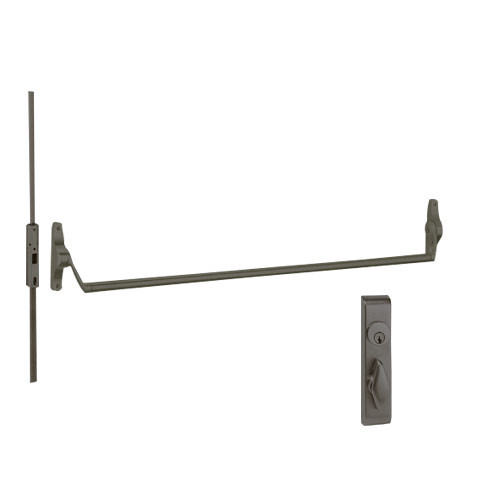

5547TL-US26D Von Duprin 5547 Series with 550DT/376T Turn Lever Non Fire Rated Concealed Vertical Rod Device in Satin Chrome Finish

The Von Duprin 5547TL-US26D series of exit device for all types of single and double metal doors with mullion. The 5547 rim exit device is a traditional crossbar design with wide acceptance because of the streamline appearance and fits doors stiles as narrow as 1-3/4" (44 mm) and standard device fits 6' 8" to 8'0" door height. The 5547 series devices are handed and field reversible

Features and Benefits:

• Satin Chrome finish
• ANSI Function: 11
• Cylinders are not included
• Includes 550DT/376T standard trim
• Turn Lever trim function - key locks
• Hex key dogging feature standard
• Crossbar length: 42" (1067 mm) with handed and field reversible
• Crossbar height to finished floor: 36-13/16" (935 mm) at center
• Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick doors
• All 5547 series exit devices are UL listed for accident hazard installations
• Strike: Top - 471U - top and 304L - bottom - unfinished strikes included as always
• Latch bolt: 3/4" (19 mm), throw
• Crossbar tubing: 1" (25 mm)
• Sex nuts and bolts are included
• Wood frame strikes: 472U for 1-3/4" door and 473U for 2-1/2" door
• Fits doors stiles as narrow as 1-3/4" (44 mm)
