Product Description

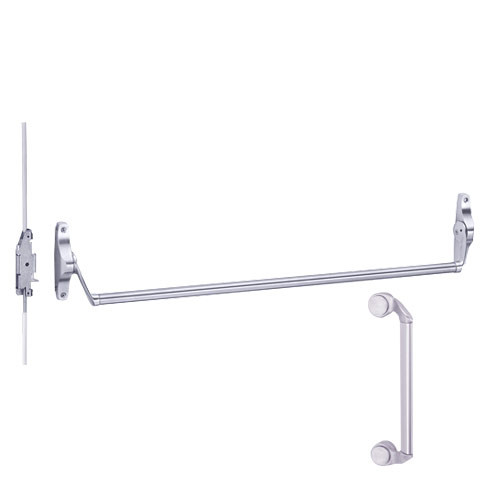

5547WDC-DT-US26 Von Duprin 5547 Series with 550DT Dummy Trim Non Fire Rated Wood Door Concealed Vertical Rod Device in Bright Chrome Finish

The Von Duprin 5547WDC-DT-US26 series of exit device for all types of single and double wood doors. The 5547WDC wood door concealed vertical rod exit device is a traditional crossbar design with wide acceptance because of the streamline appearance and fits doors stiles as narrow as 4" (102 mm). The 5547WDC series device is standard and field sizeable and devices are UL listed for accident hazard and are certified to ANSI A156.3, Grade 1.

Features and Benefits:

• Bright Chrome finish
• ANSI Function: 02
• Cylinders are not included
• Includes 550DT standard trim
• Dummy trim function - pull when dogged
• Hex key dogging feature standard
• Crossbar length: 42" (1067 mm) with handed and field reversible
• Crossbar height to finished floor: 36-13/16" (935 mm) at center
• Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick doors
• All 5547WDC series exit devices are UL listed for accident hazard installations
• Strike: Top - 338 - top and 304L - bottom - unfinished strikes included as always
• Latch bolt: 5/8" (16 mm), throw
• Crossbar tubing: 1" (25 mm)
• Sex nuts and bolts for mounting are included
• Vertical rods-hexagon: 3/8" (10 mm) adjustable top rod
• Wood frame strikes: 472U for 1-3/4" door and 473U for 2-1/2" door
• Fits doors stiles as narrow as 4" (102 mm)
• Strikes and scalp plates for metal frame applications
