Product Description

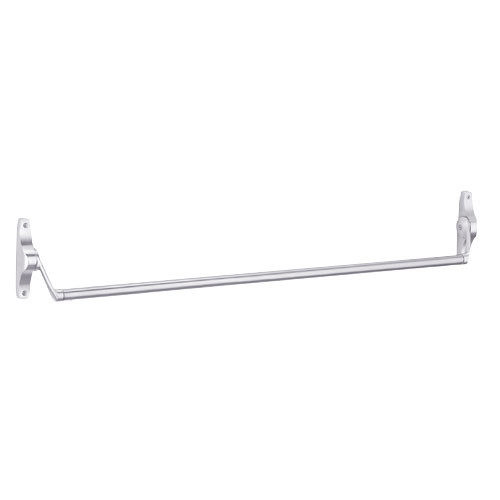

55EO-US26D Von Duprin 55 Series Exit Only Non Fire Rated Rim Exit Device in Satin Chrome Finish
The Von Duprin 55EO-US26D series of exit device for all types of single and double doors with mullion. The 55 rim exit device is a traditional crossbar design with wide acceptance because of the streamline appearance and fits doors stiles as narrow as 1-3/4" (44 mm). The 55 series devices are field reversible
Features and Benefits:
- Satin Chrome finish
- ANSI Function: 01
- Cylinders are not included
- Includes no trim
- Hex key dogging feature standard
- Crossbar length: 42" (1067 mm)
- Crossbar height to finished floor: 36-13/16" (935 mm) at center
- Fasteners: Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal and wood doors
- All 55 series exit devices are UL listed for accident hazard installations
- Strike: Top - 1409 - dull black strikes included as always
- Latch bolt: 3/4" (19 mm), throw
- Crossbar tubing: 1" (25 mm)
- Sex nuts and bolts are included
- Fits doors stiles as narrow as 1-3/4" (44 mm)
