Product Description

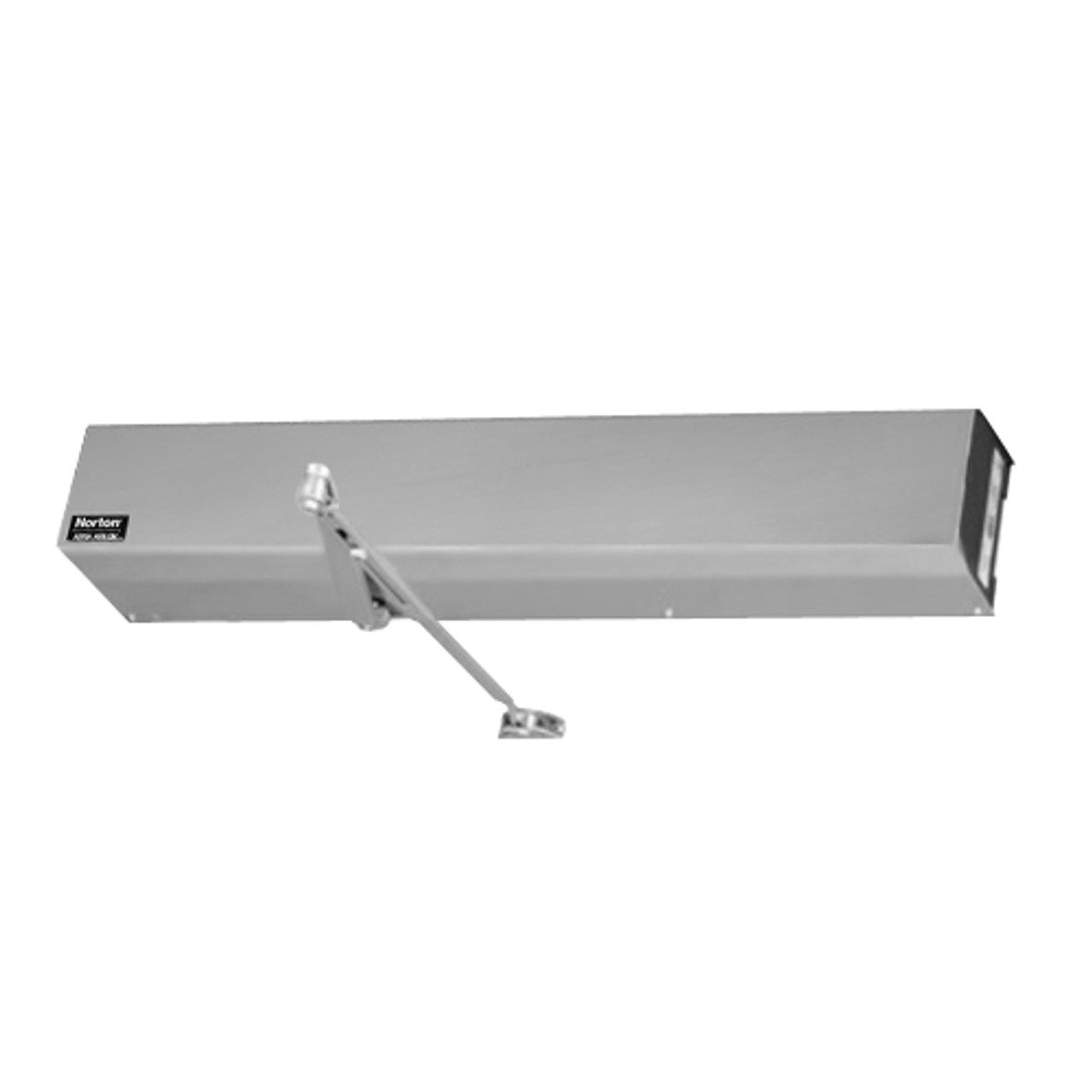

5730-PC-689 Norton 5700 Series Push Side Closer Sizes 1-6 Low Energy Power Operator with Power Cord in Aluminum Finish

The Norton 5730-PC-689 low energy power operator is ideal for doctor's offices, retirement facilities, schools or churches and this series are perfect for applications that don't require special features but demands reliability. In this generation, due to the population's and busy lifestyles, the convenience of "hands-free" door opening is more popular than ever. The 5700 patented design is based on ease and simplicity. This operator installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton's 1601 closer body.

Features and Benefits:

• Aluminum finish
• Handing: Non handed

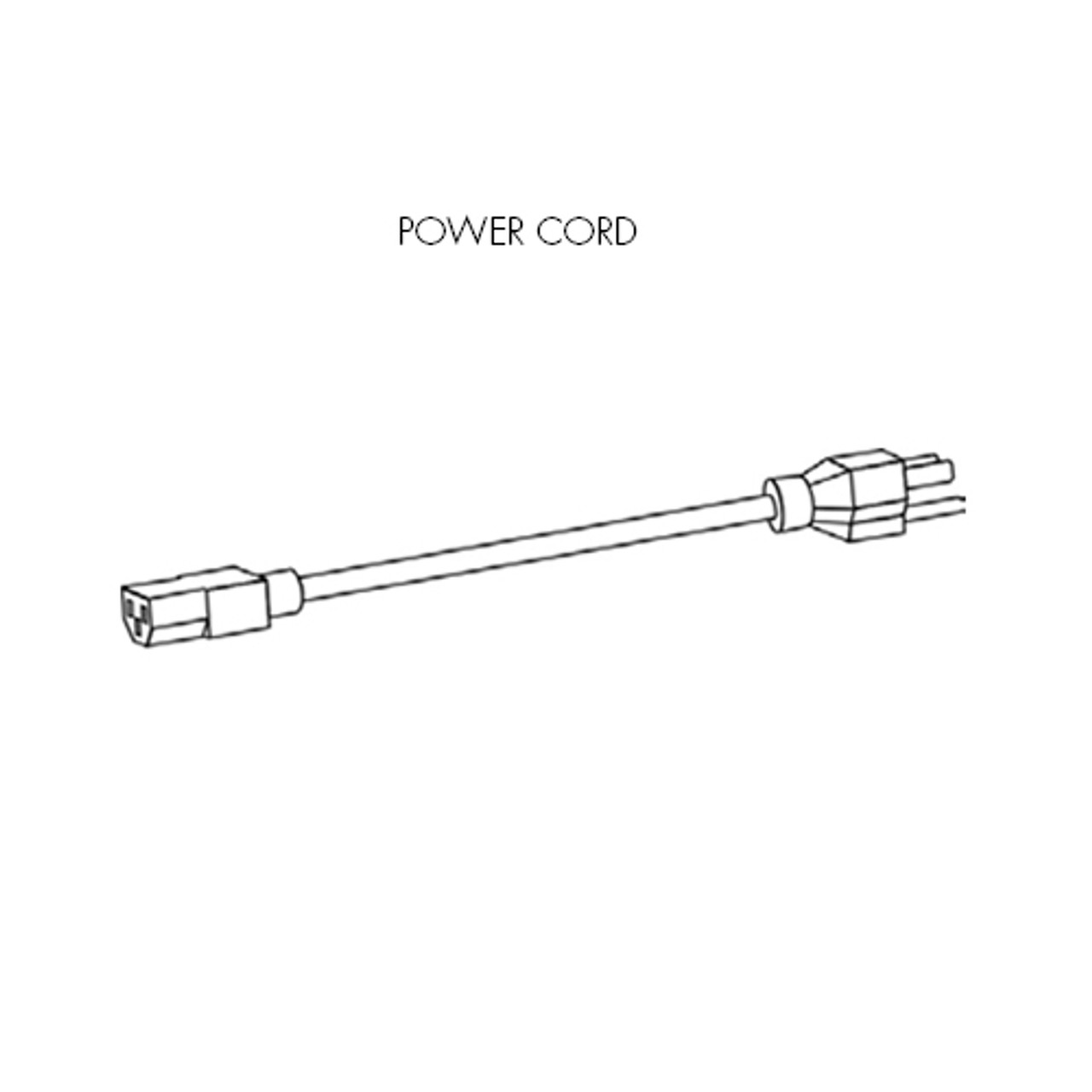

• Power cord is included
• Stop (Push) side of door
• Closer sizes 1-6
• Adjustable door sensitivity
• Power Input; 120 VAC, 60Hz
• ANSI/BHMA A156.19 certified

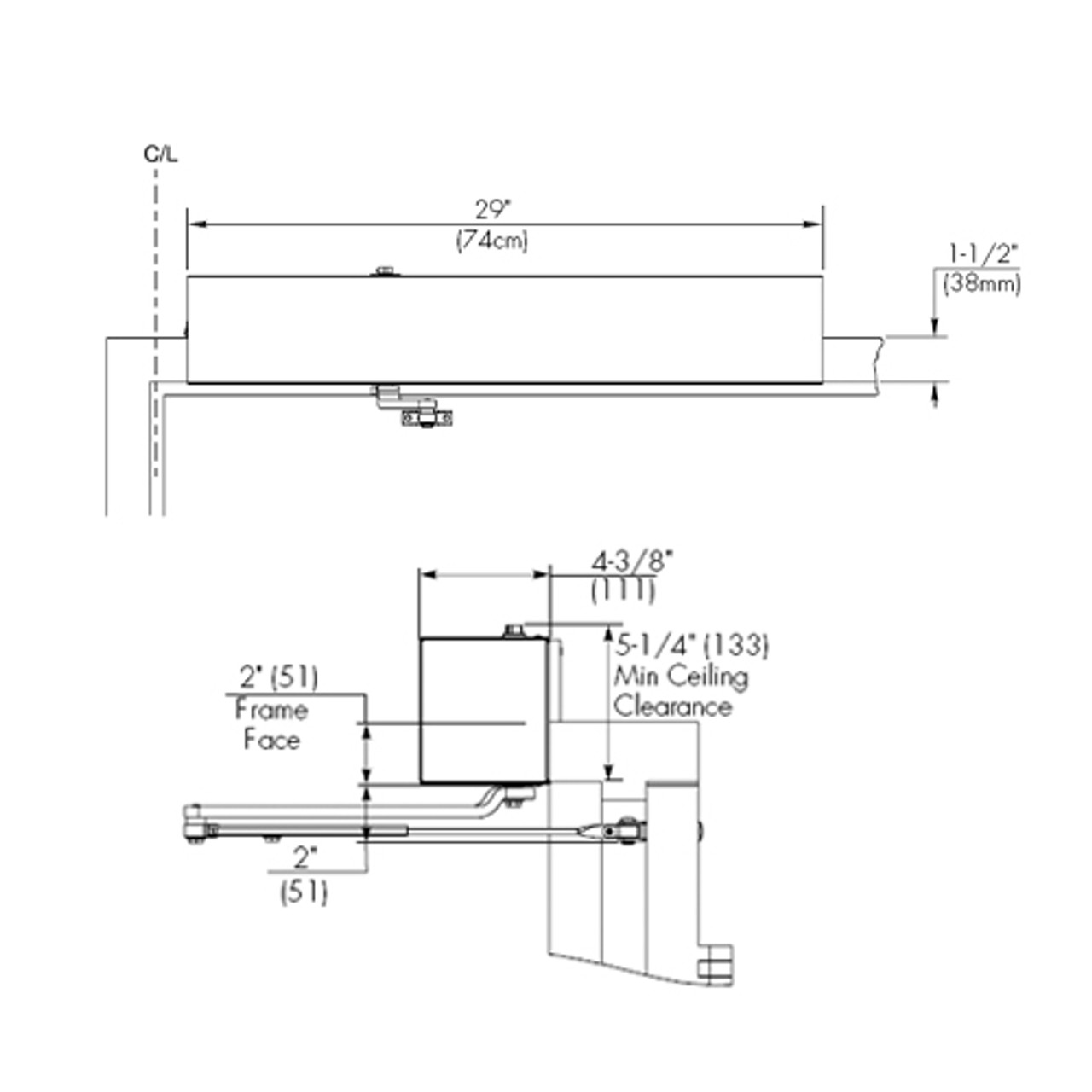

• Frame reveals: 2-5/8" to 6-3/4" (67-171mm)
• Operates as mechanical surface close during close cycles, when door is opened manually or if power is turned off
• Quiet operation
• Door can be opened manually if desired
• Spring force provides the feel of a normal manual door closer
• End-User on/off switch
• Motor stops if door is obstructed during an opening
• Overload safety shut-off
• Prevents motor/inverter damage
• After two minutes of receiving a door activation signal, the inverter will time out and close the door
