Product Description

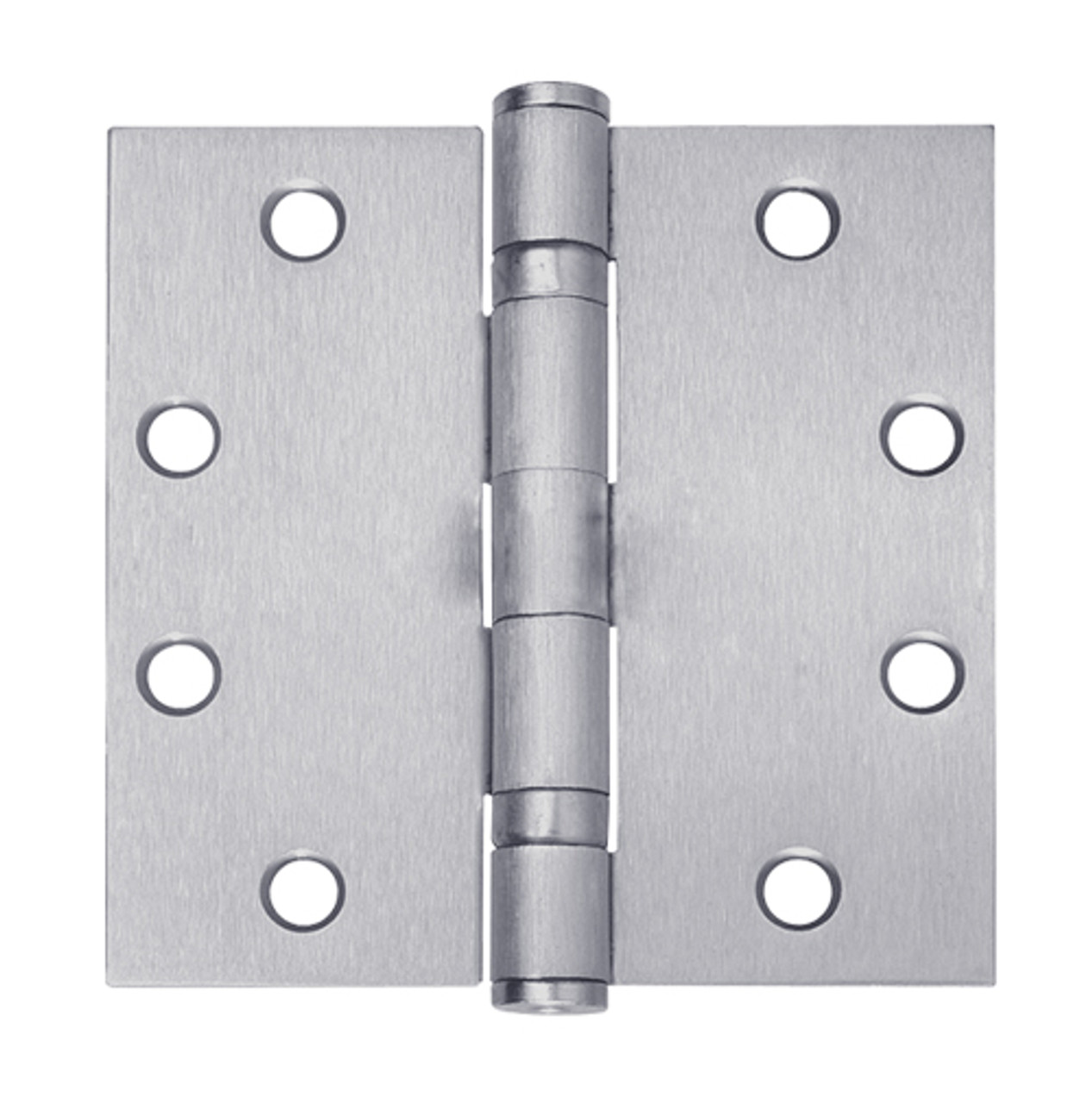

5BB1-5x4-5-652-TW8 IVES 5 Knuckle Ball Bearing Full Mortise Hinge with Electric Thru-Wire in Satin Chrome Plated

The IVES 5BB1-5x4-5-652-TW8 hinges are used for standard weight doors with medium frequency usage. The 5BB1 Hinges are certified to the ANSI/BHMA A156.1.

Features and Benefits:

• Satin Chrome Plated finish
• Hinge Size: 5"x4.5"
• Hinge Type: Full mortise
• Mounting style: Square
• Material: Steel
• Knuckles: 5
• 8 Electric thru-wire
• Bearing Type: 2 Ball bearing
• Pin Type: Removable pin
• Weight: Standard weight
• Wood and metal screws are included
