Product Description

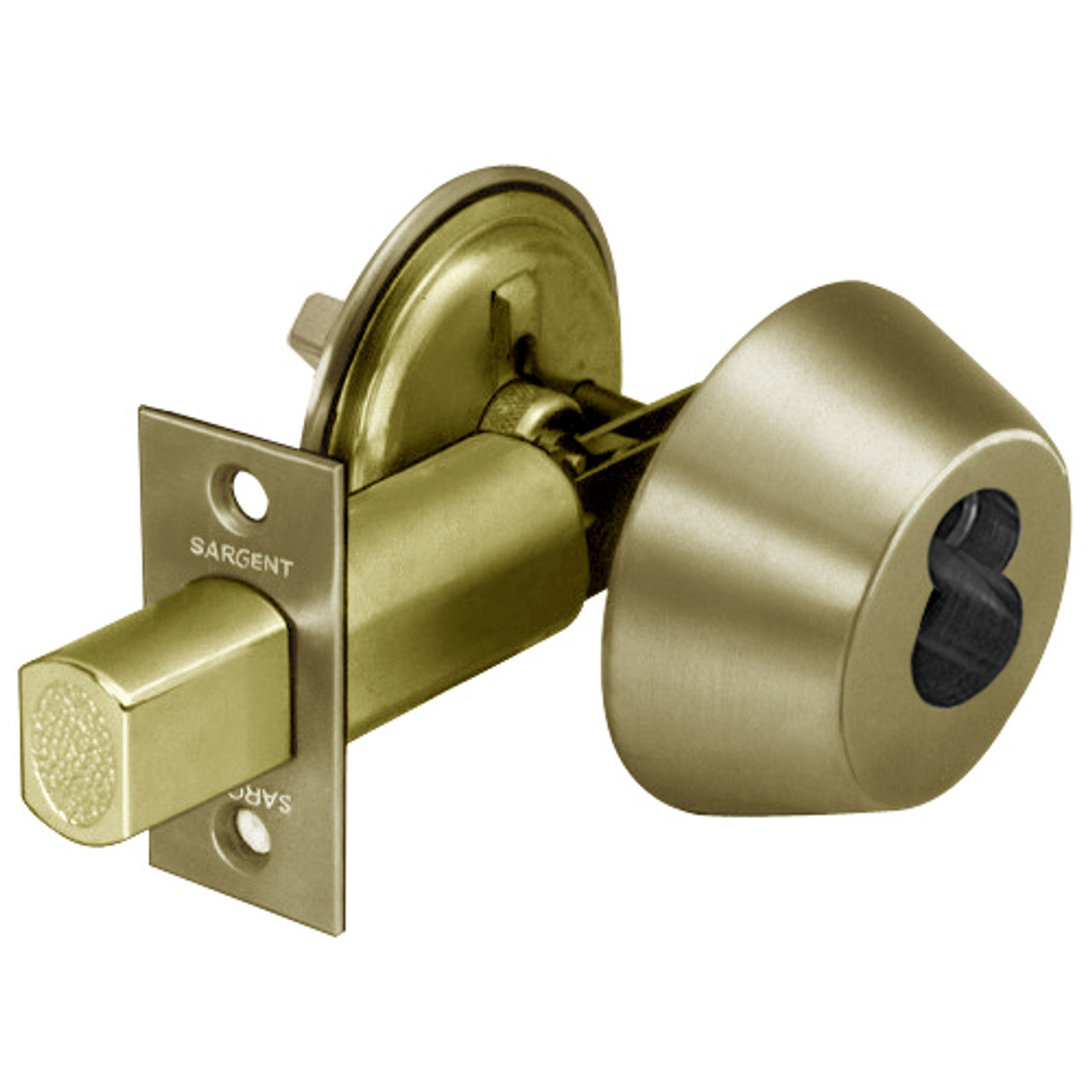

60-485-04 Sargent 480 Series Single Cylinder Auxiliary Deadbolt Lock with Thumbturn Prepped for LFIC in Satin Brass Finish

The Sargent 60-485-04 series is a high grade cylindrical deadbolt which meets ANSI A156.5 Grade 1 requirements.

Single cylinder with thumbturn: Key outside operates deadbolt. Thumb turn inside operates deadbolt.

Features and Benefits:

• Satin Brass finish
• Strike: 404 Strike standard
• Backset: 2-3/4" (70mm) standard
• Handing: Non handed, field reversible
• Core is not included
• Bolt: 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw
• For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) thick standard
• Housing: Non-ferrous, reinforced, one piece 2-1/2" (64mm) diameter
• Single cylinder with thumbturn
• SARGENT Large format interchangeable plastic disposable construction core
