Product Description

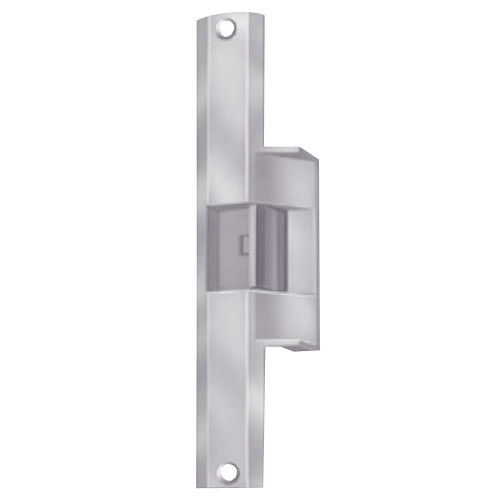

6224AL-FS-DS-24VDC-US32D Von Duprin Closed Back Electric Strike for Mortise or Cylindrical Devices in Satin Stainless Steel Finish

The Von Duprin 6224AL-FS-DS-24VDC-US32D series of Electric Strike is specifically designed to provide the remote release of a locked door as it allow the door to be opened without retracting the latchbolt. This process happens by releasing of the electric strike lip also called keeper or gate, when the door closes and the beveled latchbolt rides over the lip and falls into the electric strike pocket. This feature known as remote release provides added benefits such as increased convenience and efficiency. The 6200 series electric strikes also provide added security and traffic control. The 6224AL series offers a good variety of electric strikes with highly customizable features for use on new installations with mortise locks without deadbolt or cylindrical locks on 1 3/4" (44mm) or 2 1/4" (57mm) thick aluminum double door applications. Here the deadbolt must be manually operated. It is well suited for new construction applications. The electric strike and door hardware together secure your door more safely.

Features and Benefits:

• Satin Stainless Steel Finish
• All durable stainless steel construction material
• Von Duprin electric strikes are well known for its reliability, durability and security
• Perfectly designed for use with mortise locks without deadbolt or cylindrical locks on 1.75 or 2.25 inch thick aluminum double door applications
• Dual switch monitoring operation
• DS standard:
  • Monitors the latch bolt and lock status
  • Rated - 24V
  • Operating range - 2 A to 50 mA
• 24 VDC voltage operation as standard
• Non-handed operation provides greater flexibility
• UL listed burglary-resistant and electric strike for fire doors and frames door hardware
• Strike box is adjustable to compensate for misalignment of the door or frame
• Accepts 3/4 inch (19mm) throw latchbolt very easily
• Included two piece plug connectors are furnished for ease of installation and for removal during strike servicing
• Fail safe power failure mode and non fire-rated device
• Fail safe feature - require power to be applied to the unit to lock the strike lip which is unlocked on loss of power
