Product Description

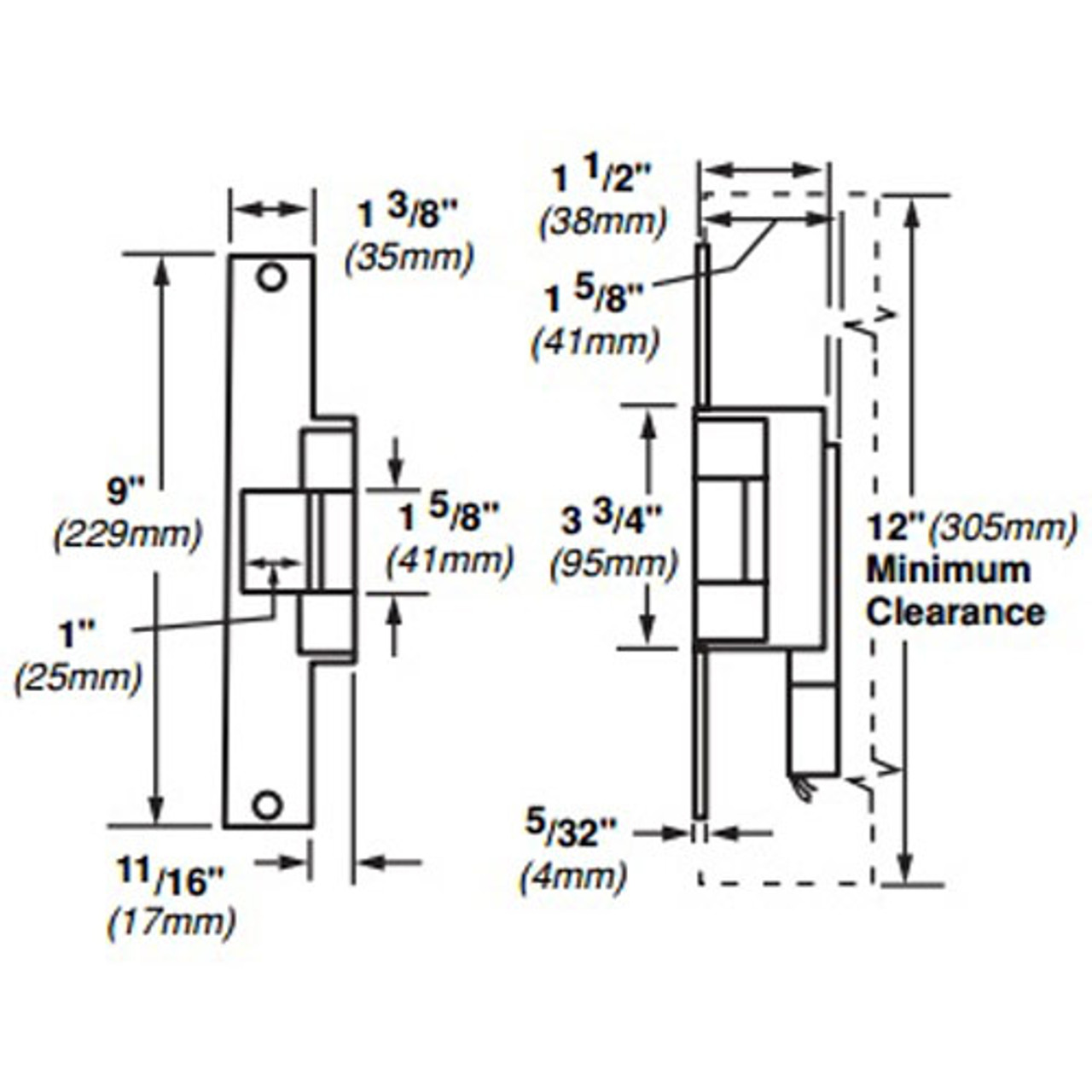

6226-FS-DS-LC-24VDC-US3 Von Duprin Closed Back Electric Strike for Mortise or Cylindrical Devices in Bright Brass Finish

The Von Duprin 6226-FS-DS-LC-24VDC-US3 series of Electric Strike is specifically designed to provide the remote release of a locked door as it allow the door to be opened without retracting the latchbolt. This process happens by releasing of the electric strike lip also called keeper or gate, when the door closes and the beveled latchbolt rides over the lip and falls into the electric strike pocket. This feature known as remote release provides added benefits such as increased convenience and efficiency. The 6200 series electric strikes also provide added security and traffic control. The 6226 series offers a good variety of electric strikes with highly customizable features for use on new installations with mortise locks without deadbolt or cylindrical locks on 1 3/4" (44mm) or 2 1/4" (57mm) thick double door hollow metal or aluminum applications. Here the deadbolt must be manually operated. It is well suited for new construction applications. The electric strike and door hardware together secure your door more safely.

Features and Benefits:

• Bright Brass Finish
• All durable stainless steel construction material
• Von Duprin electric strikes are well known for its reliability, durability and security
• Perfectly designed for use with mortise locks without deadbolt or cylindrical locks on 1.75 or 2.25 inch thick double door hollow metal or aluminum applications
• Dual switch monitoring operation
• DS-LC low current dual signal:
• Monitors the latch bolt and lock status
• Rated - 24V
• Operating range - 50 mA or below
• The DS-LC has low volt gold contact switches for use on applications associated with computer control and monitoring
• 24 VDC voltage operation as standard
• Non-handed operation provides greater flexibility
• UL listed burglary-resistant and electric strike for fire doors and frames door hardware
• Strike box is adjustable to compensate for misalignment of the door or frame
• Accepts 3/4 inch (19mm) throw latchbolt very easily
• Included two piece plug connectors are furnished for ease of installation and for removal during strike servicing
• Fail safe power failure mode and non fire-rated device
• Fail safe feature - require power to be applied to the unit to lock the strike lip which is unlocked on loss of power
